Casolin Avant 1100
Avant 1100 sanding machine.
Casolin Avant 1100 Features
Calibrating - sanding machine
Available in 4 versions ( 1 belt roller and pad - 2 belts 1 roller and 1 pad - 2 belt rollers and roller - 2 belt roller and roller and pad)
Machine with shaped front locking unit for fast and convenient worn-belt replacement
Handle for convenient adjustment of grain thickness and pneumatic roller disengagement/synchronization system
Rubber covered pressure riller with work-piece anti return safety device

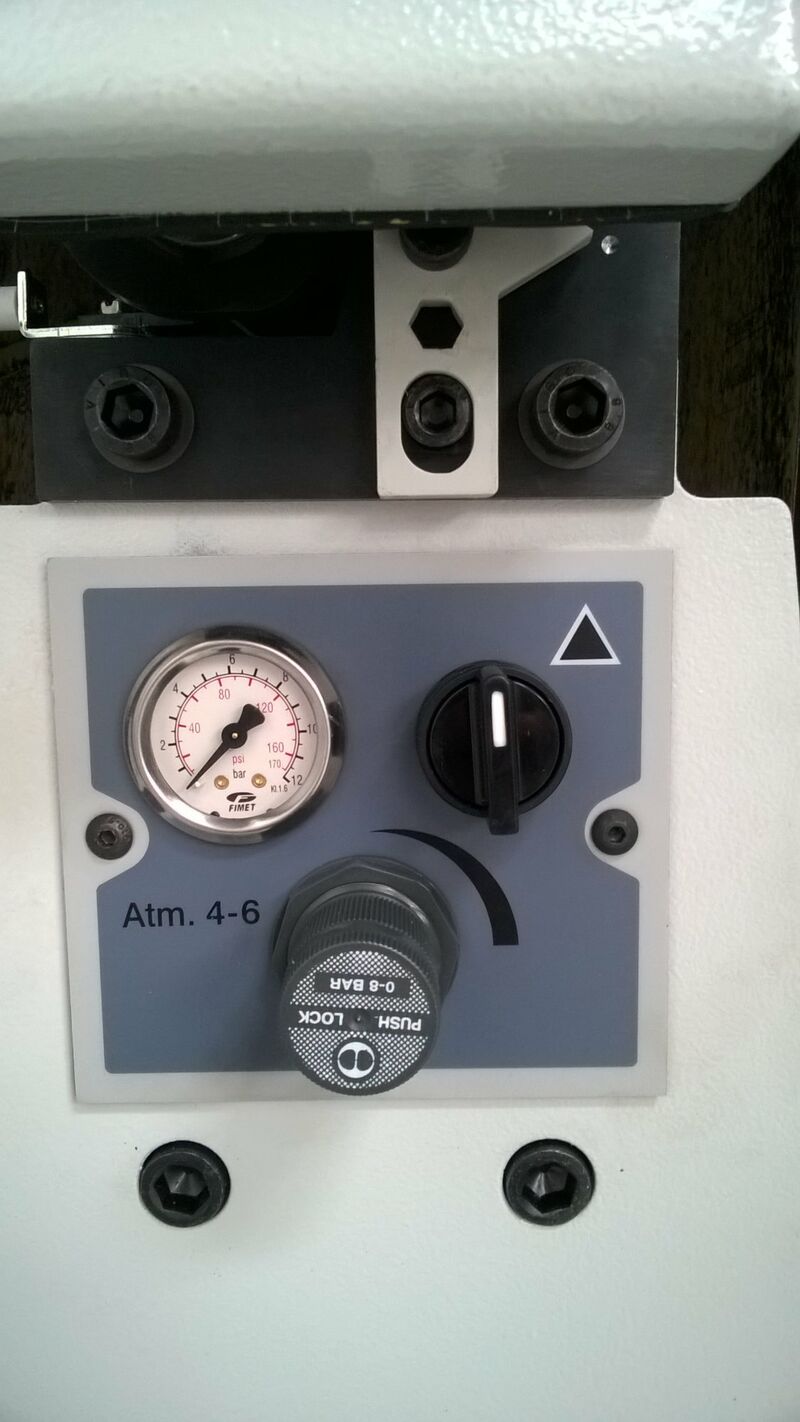

Extra strong paper tensioning pneumatic unit with internal pressure balancing
Product Documentation
Casolin Avant 1100 Specification
| Working width | 1100 mm |
|---|---|
| Min working height | 3 mm |
| Belt size | 2150 x 1140 mm |
| Feed speed | 6-12 mt/min |
| Feed motor power | 0.37-0.55 Kw |
| Lifting motor power | 0.18 Kw |
| Max working height | 150 mm |
