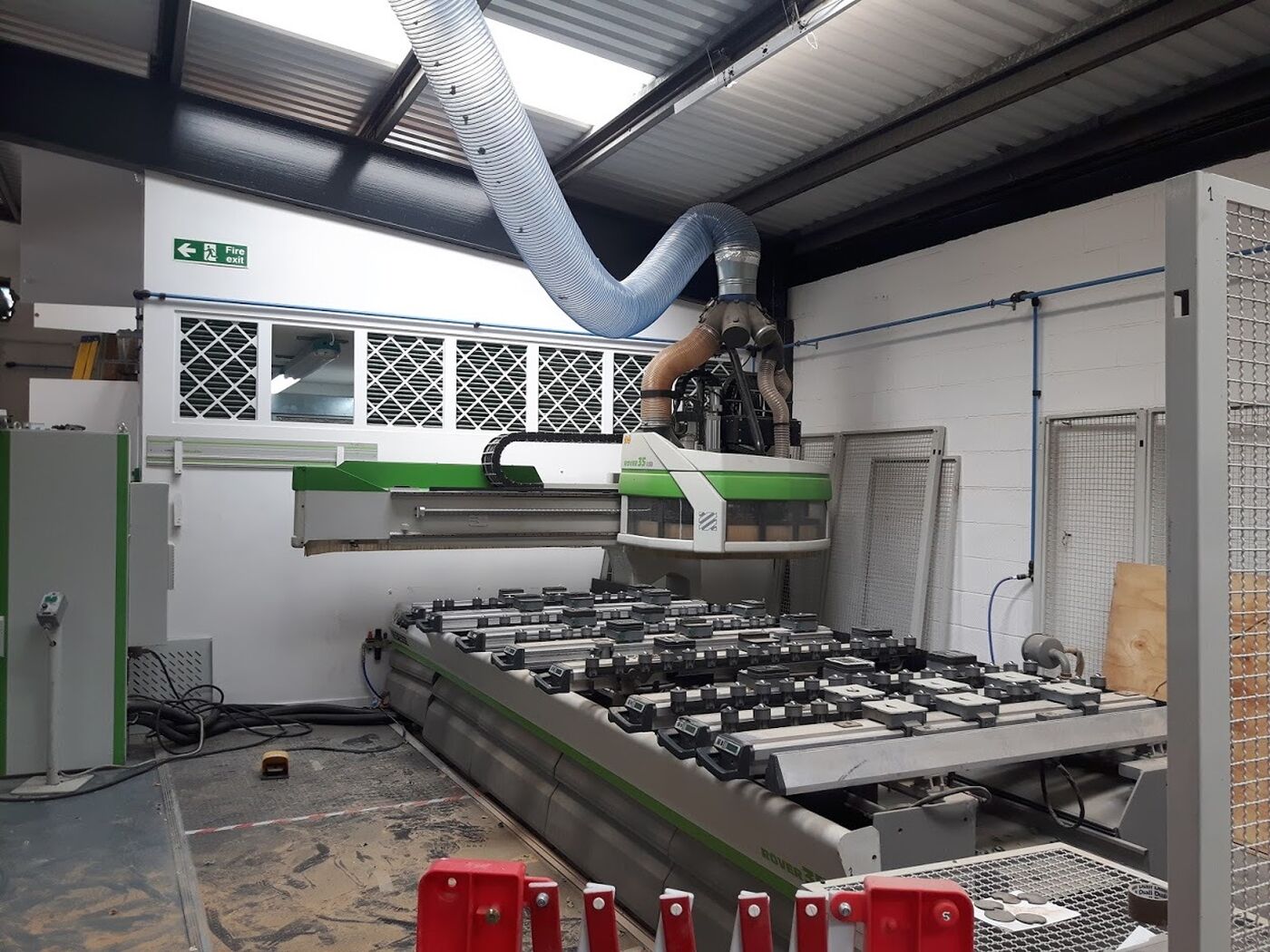

Technical features:
• Working fields in X - Y – Z: mm. 3.500 - 1.650 - 180
• X - Y - Z axis stroke: mm. 4.047 - 2.060,5 - 275
• Axes speed X-Y-Z: m/min. 100 - 100 - 30

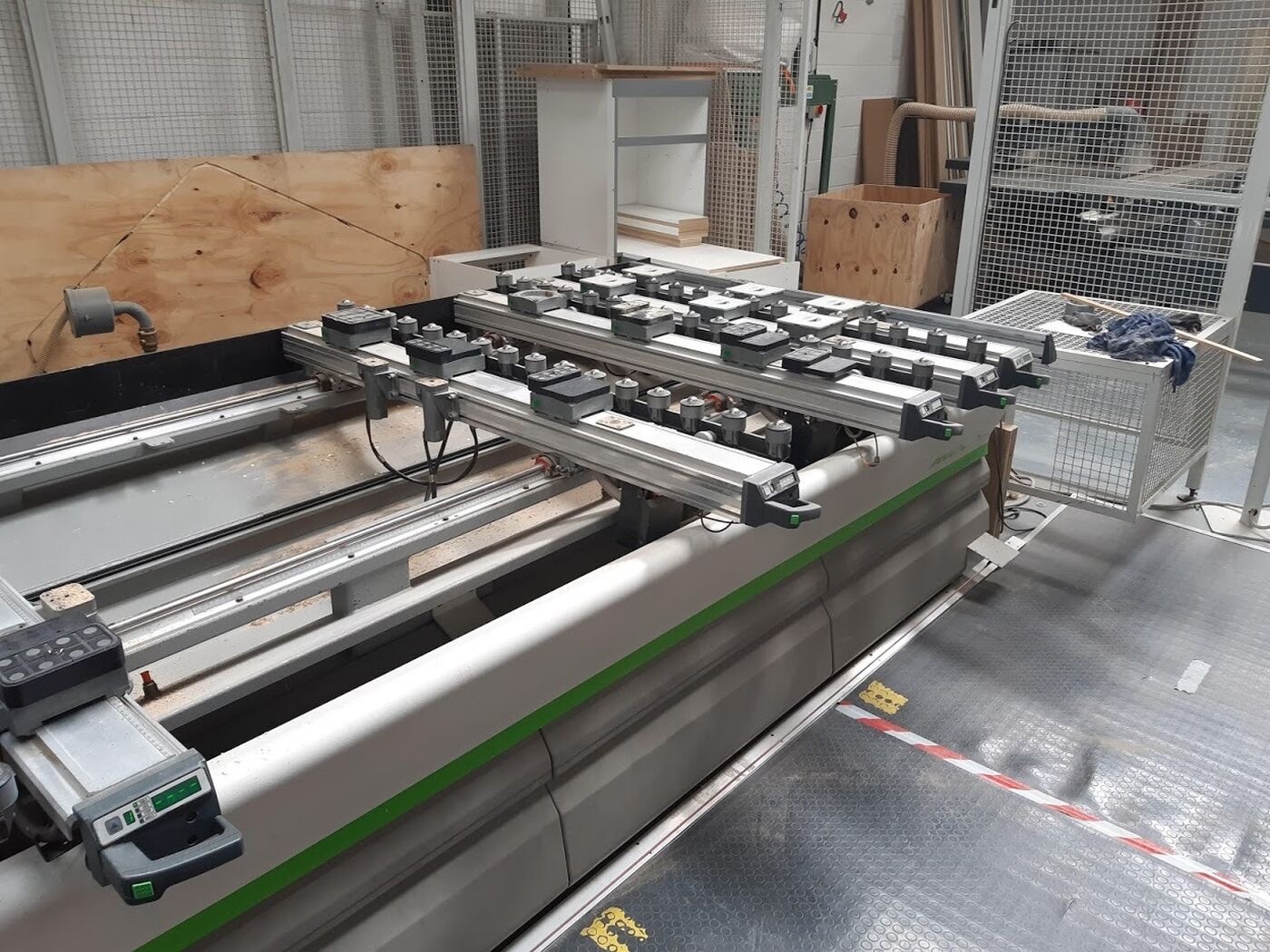

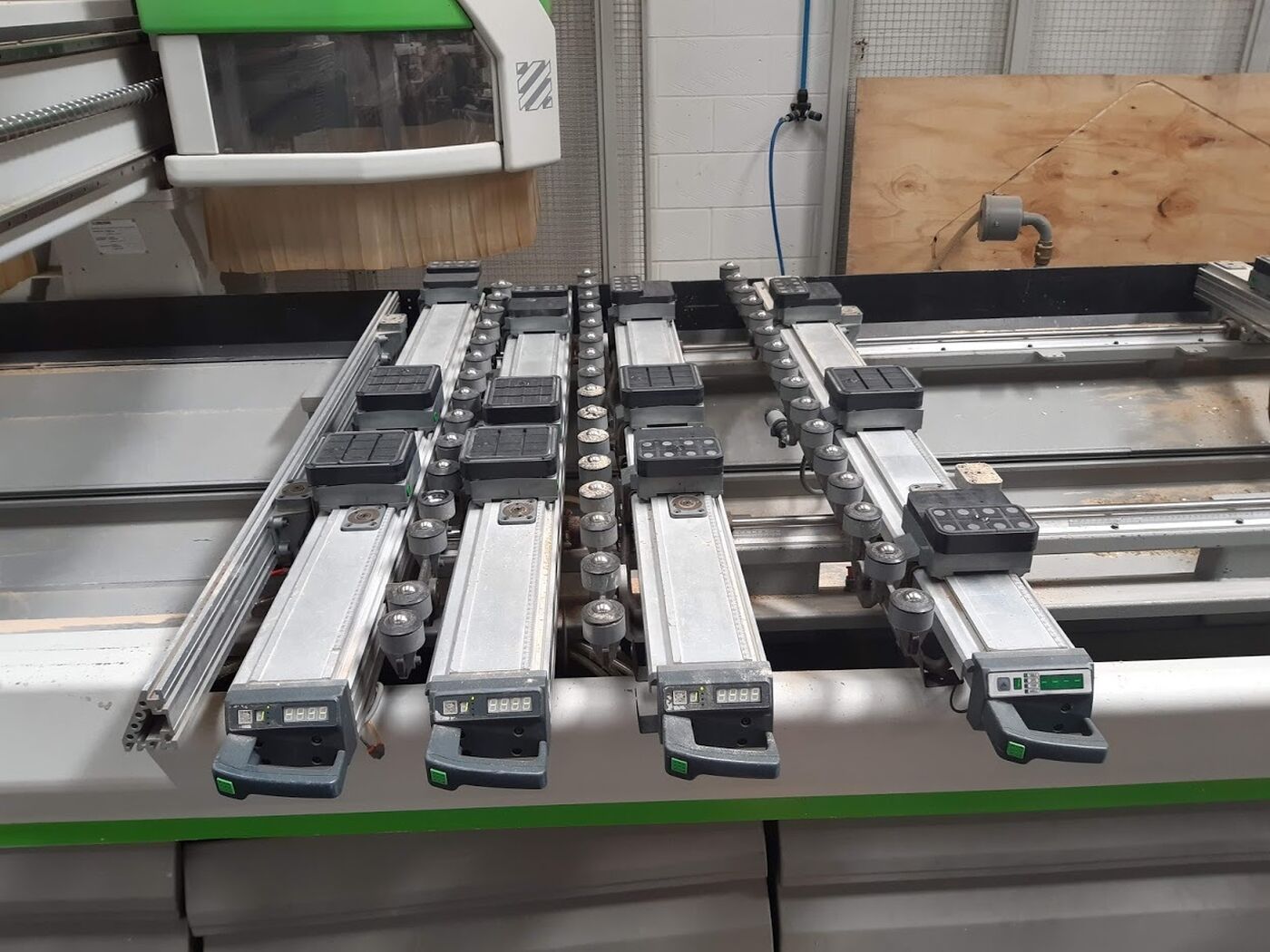

• ATS Working table with 8 bars
• Carriages: 3
• Vacuum units: 3
• Side and end references stops
• 2 independent working fields allows the simultaneous machining of 2 identical, right and left handed or different pieces
• Easy positioning of heavy work pieces and large panels with 4 lifting supports
• Machining, boring and routing of the five sides of the piece
• Air cooling
• Connection: ISO 30
• Inverter
• Tool changer with 7 positions
• Automatic lubrication
• Vacuum pump
• Central extraction tube
Boring unit:
• Spindles for vertical boring in X=10, in Y=10
• Spindles for horizontal boring in X=3+3, in Y=1+1
• Max rotation rpm 4000

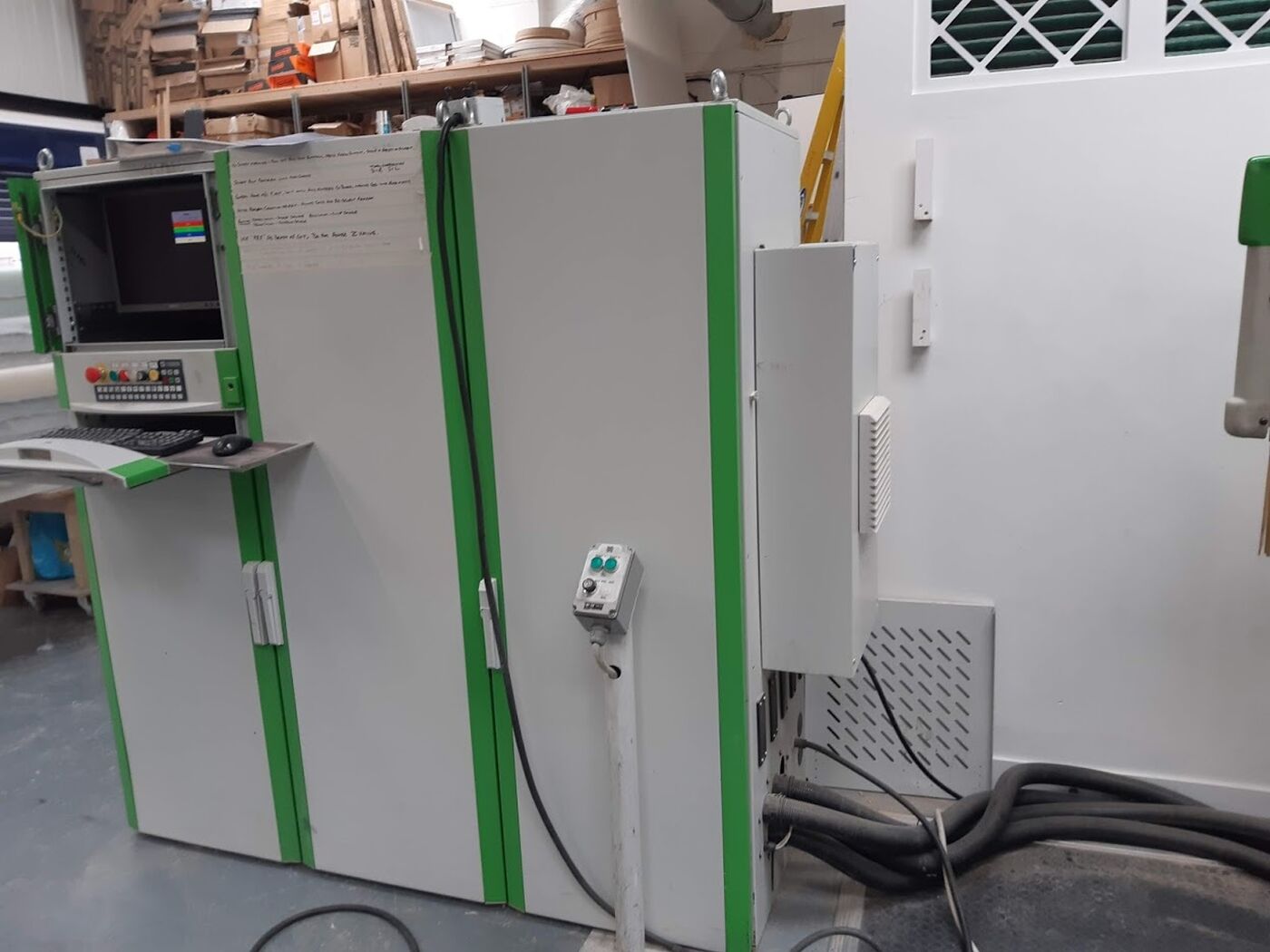

• Pc based NC 1000 Control system
Safety devices:
• Curtain guards protecting the working unit
• Contact mats
• Perimeter guards with entrance door
• Working air pressure: bar 6,5/7,5
• Overall dimensions: mm. 6.537 x 4.570 x 2.700 h
• Machine weight: Kg. 5.100
