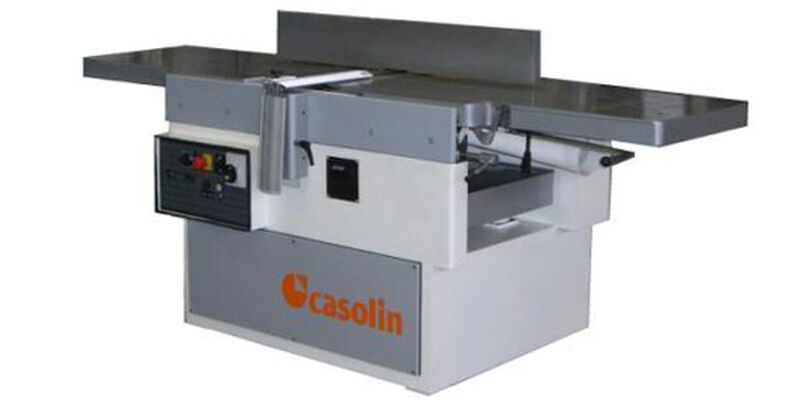

Casolin Combi 410

About the Casolin Combi 410

The combined machine 410 represents the latest in technology ensuring high quality work with quick and practical set ups and operation. The passage from planing to thicknessing work is made easy through the simultaneous lifting of the tables balanced by the lifting cylinders. The heavy thicknessing table of cast iron supported by four ground columns with inner rise screw synchronously guarantees the greatest rigidity. The machine has an effective feeding system with four speeds, which guarantees more power and uniformity feed.

Casolin Combi 410 Features

Tick bullet point Shaft 4 knives Ø mm 110
Tick bullet point Rotation speed shaft g/l' 5000
Tick bullet point Suction hood Ø mm 120
Tick bullet point Motor power Kw(HP) Kw (HP) 4 (5,5)
Tick bullet point Net weight Kg 670

Casolin Combi 410 Options

Tick bullet point Tersa cutter block
Tick bullet point 5.5Kw motor with brake
Tick bullet point Special voltage
Tick bullet point Mortising unit

Casolin Combi 410 Specification

Surface Planer .
Working table dimensions mm 2040x410
Max cutting depth mm 7
Adjusting surface fence 90°- 45° mm 1120x 170
Thickness Planer .
Working table dimensions mm 960x410
Working height min / max mm 4/225
Max cutting depth mm 5
2 infeeding speeds Mt/l' ago-14
Mortising machine .
Working table dimensions mm 540 x 250
Longitudinal / transversal/vertical mm 130/130/140
Wescott chuck Ø mm 0-16
