Used Altendorf F45 Elmo 4

Back arow icon Previous Page


About the Used Altendorf F45 Elmo 4

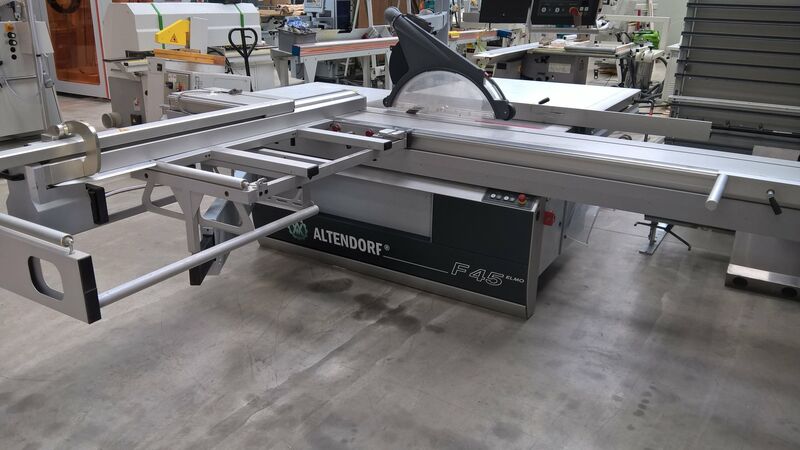

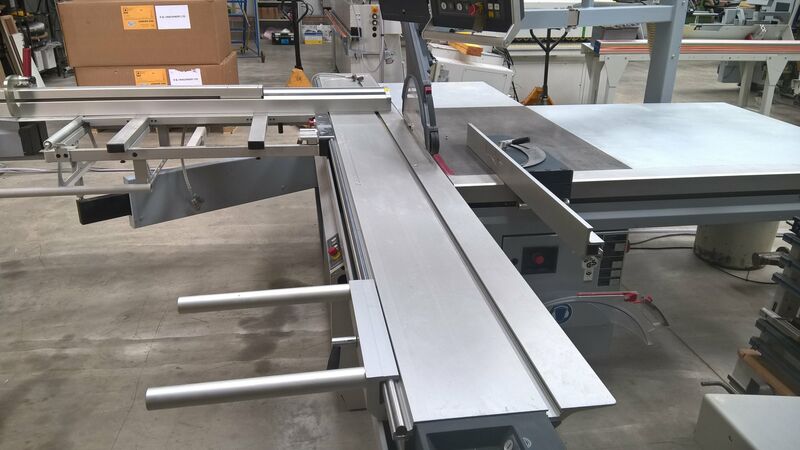

Rare chance to buy a used Altendorf F45 Elmo 4 panel saw (2012), with motorised Rip fence and Cross-cut fence, 3 axis scorer, on off switches mounted to the sliding table, 12 inch touch screen and cross-cut table extension.

Machine in very good condition, fully serviced and checked by our Altendorf trained engineers.

For further details / information or to view the machines please contact our sales team on 01455 840224.

Used Altendorf F45 Elmo 4 Features

Tick bullet point Year 2012
Tick bullet point Sliding table 3800mm
Tick bullet point Altendorf Quick change blade system
Tick bullet point Motor 7.5Hp Vario drive (Speeds from 2000-6000rpm)
Tick bullet point ON/OFF Switches Mounted to the Sliding table

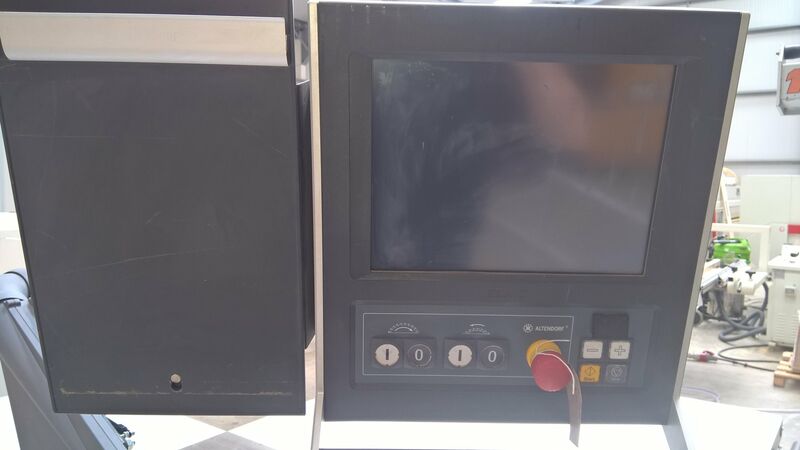

Tick bullet point Eye Level Controller with 12" Touch screen controls
Tick bullet point Rip Fence 1600mm Motorised adjustment
Tick bullet point Cross slide extension
Tick bullet point STEG Panel support
Tick bullet point Scoring unit with Rapido Plus
Tick bullet point Motorised Crosscut mitre fence (angles from 0-47 degrees) with 2 stops. Angles display on the Touch screen for operator ease.

Used Altendorf F45 Elmo 4 Options

Tick bullet point Delivery
Tick bullet point Commissioning
Tick bullet point Training

Used Altendorf F45 Elmo 4 Specification

3 phase 7.5Hp Vario drive motor
Spindle speeds Variable from 2000 rpm to 6000 rpm
Max Diameter saw blade 500mm
Max depth of cut 175mm - with scoring saw blade removed
Rip fence motorised 1600mm
Crosscut mitre fence motorised 3200mm, with angle settings from 0 -47 degrees displayed on the Touch screen and auto length compensation.
Scoring blade 3 axis - fully controlled from the Touch screen
Rise, Fall and tilt of saw blades All motorised
