Used-Altendorf F45

used machine

Machine Overview

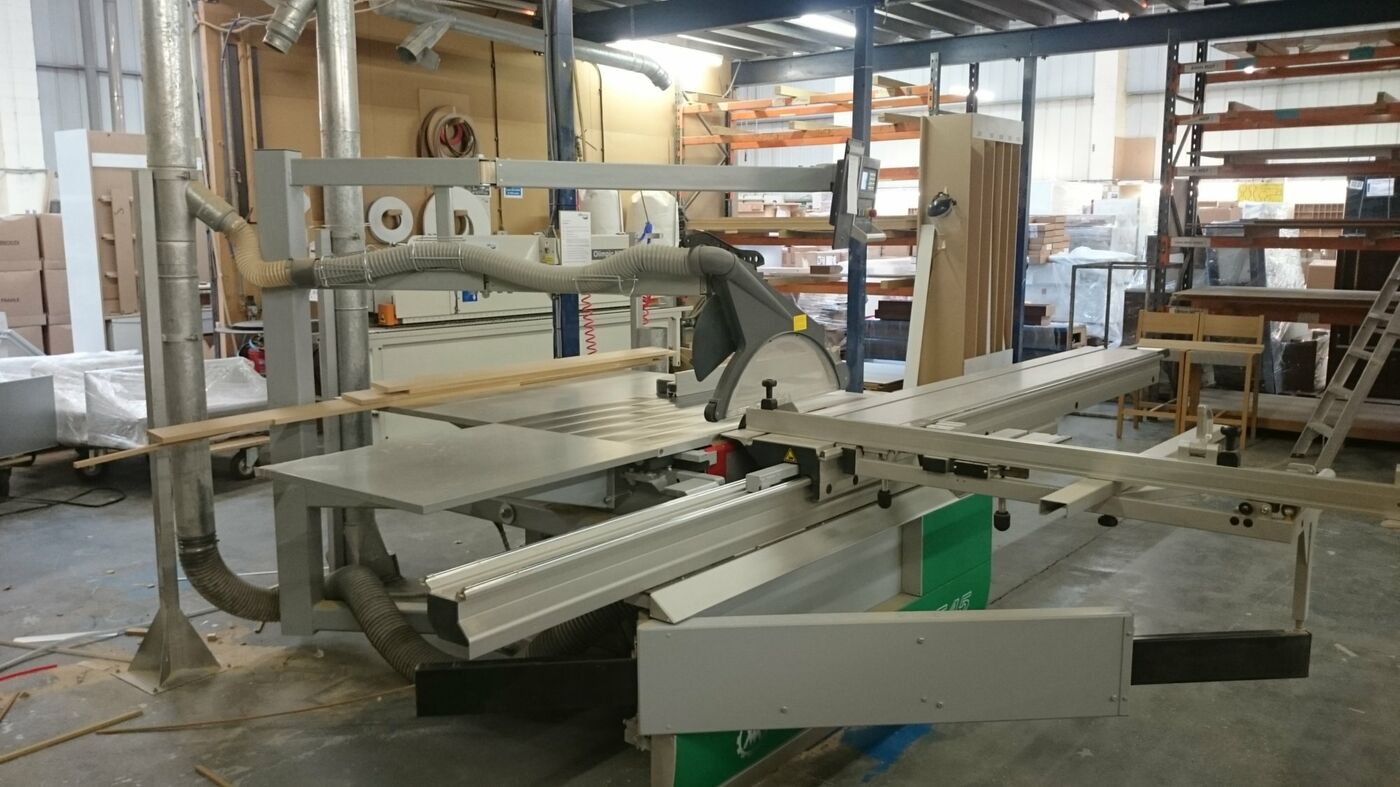

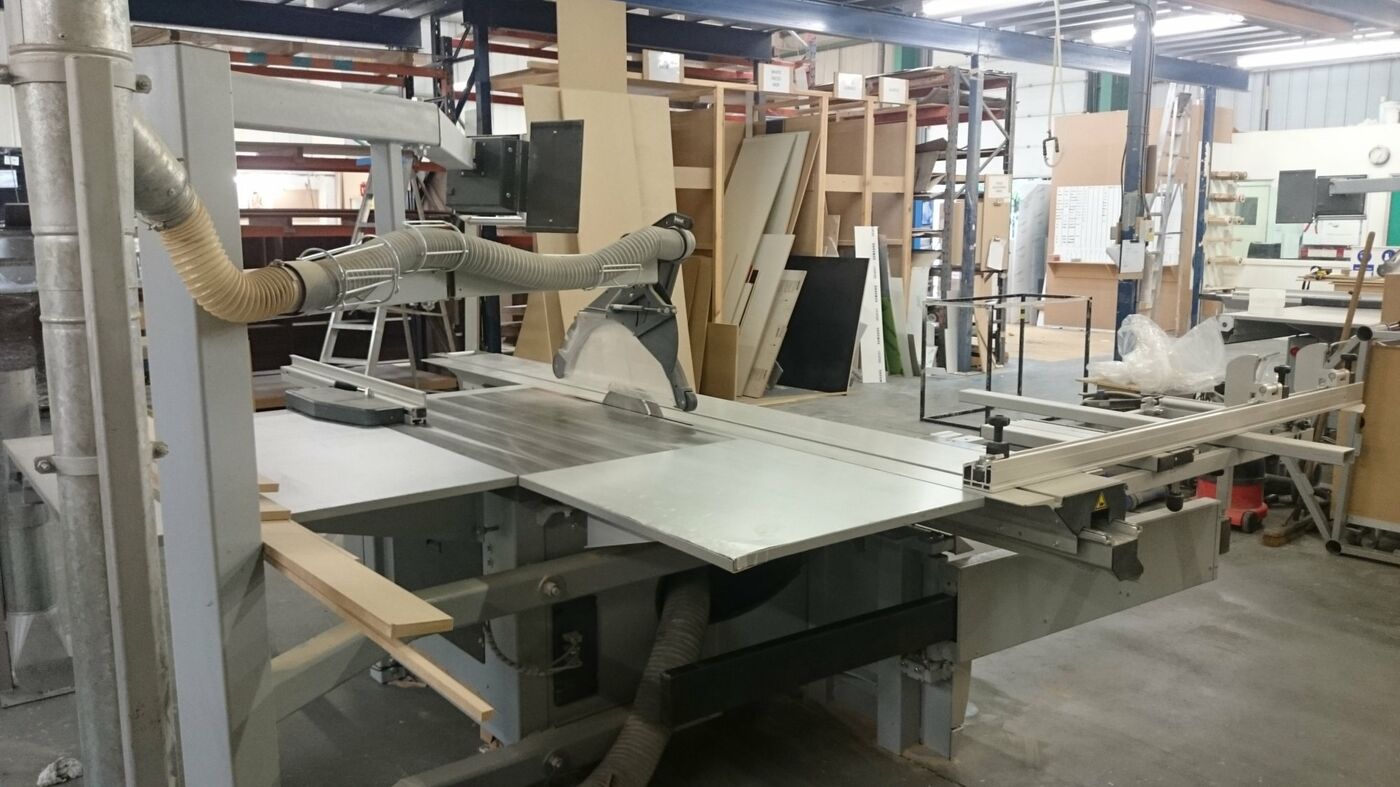

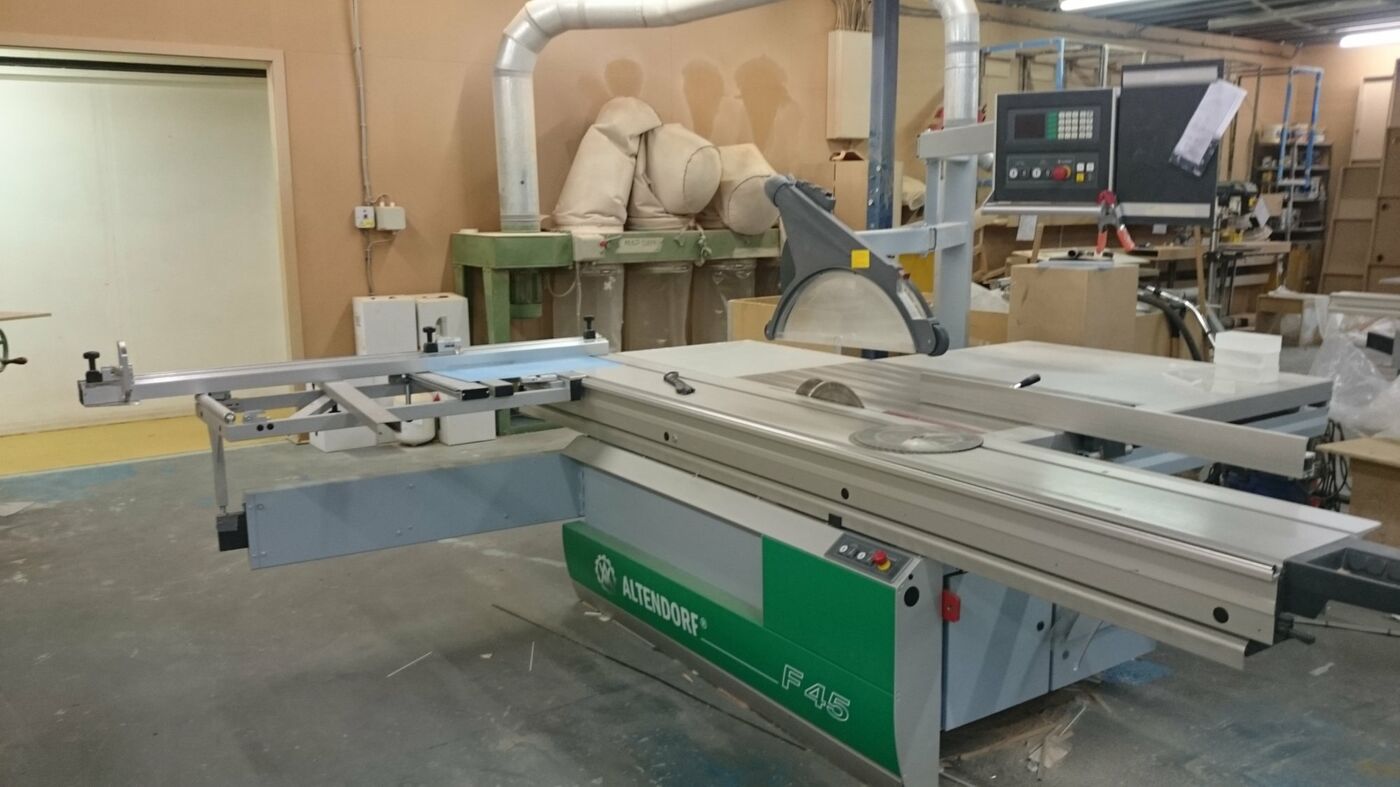

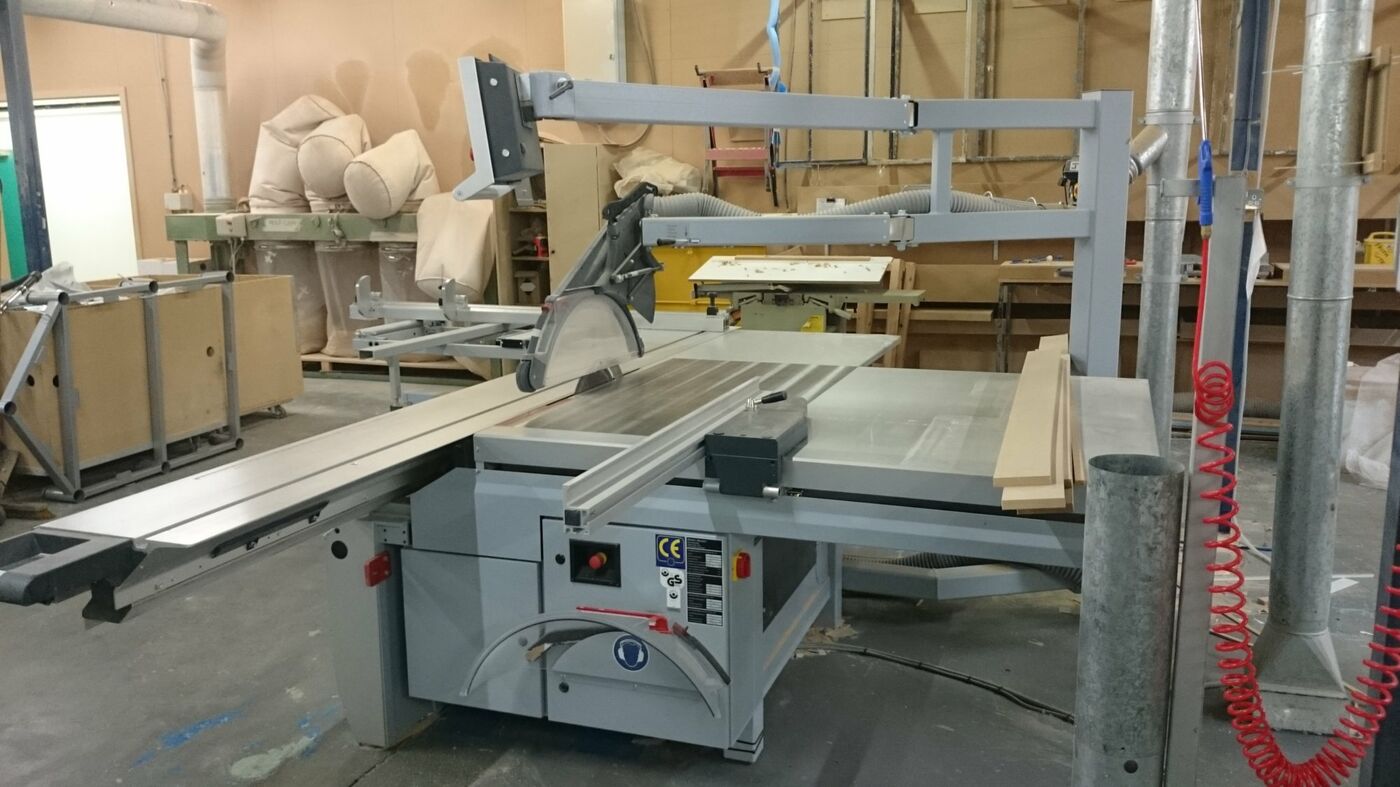

Introducing the Used-Altendorf F45

Excellent opportunity to buy a nearly new Altendorf F45 (2013).  This machine has been well looked after, and R&J Machinery have serviced the machine regularly.

It is an options Pack 3 machine, with 3200mm sliding table, 1300mm Motorised Rip fence, Overhead control panel, Rapido Scorer and Vario Drive motor.

If you require any further info or would like to view the machine, please call our team on 01455 840224.

The F 45 III is controlled from an eye-level operating panel which allows the user an easy overview of all settings. The panel can be adjusted ergonomically to suit the user, moving both vertically and

horizontally. The practical clipboard can be fixed to either the left or the right of the operating panel. The motorised rip fence is operated via a keypad from this eye-level panel. The dimensions appear on the

large screen. This fence saves you running round to the other side of the machine and back to change the settings. The VARIO drive is particularly good for obtaining the optimal cutting speed setting for your material.

The infinitely variable speed control is operated via a keypad, and the settings are displayed clearly on the LCD screen. The VARIO drive means there’s no need to move the V-belt to change the speed, and the saw

blades will no longer need such frequent sharpening.

Product Features

  • Options Pack 3
  • Vario Drive Motor 7.5Hp (Gives power rating up to 11Hp) infinitely variable speed adjustment between 2 000 and 6 000 rpm.
  • 1300mm Motorised Rip fence
  • Overhead control panel
  • Motorised rise/fall and tilt control for main saw blade
  • Crosscut-mitre fence, manual adjustment with length compensation,crosscuts to 3 500 mm
  • Quick change system for the main saw blade
  • Max. cutting height 175 mm, max. saw blade diameter 500 mm (with scoring unit fitted)
  • 840 mm table extension, anodized aluminium
  • USB interface for data and program transfer
  • Machine diagnostics and operating hours counter

Product Options

  • Delivery
  • Installation

Product Specification

Sliding table length 3200mm
Rip fence motorised 1300mm
Max Depth of cut 175mm
Scoring unit Yes - Rapido for quick adjustment of the scorer
Motor power 7,5 Hp Vario Drive
Rpm main blade 2000 - 6000rpm
Crosscut fence max length 3500mm
Cross-cut Fence Angles for Mkitres cuts Yes
Display large 90 mm LCD display
Motorised rise and Fall and Tilt of the blades Yes
Repaeat cuts Yes - 20 set ups available in the storage function
Machine self diagnostics Yes
