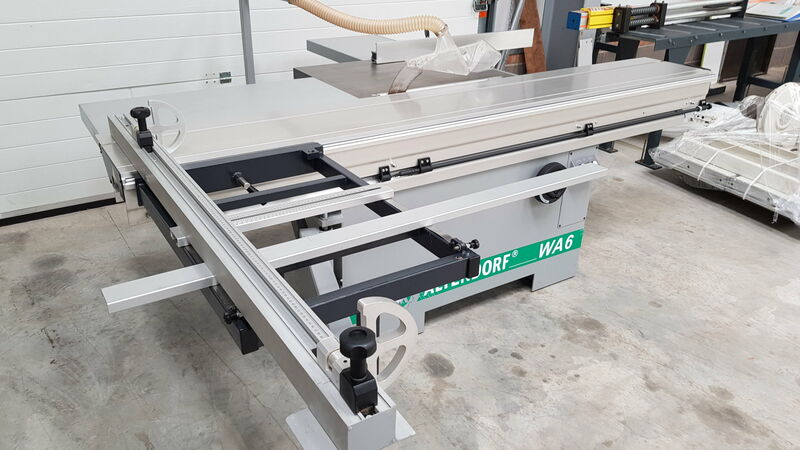

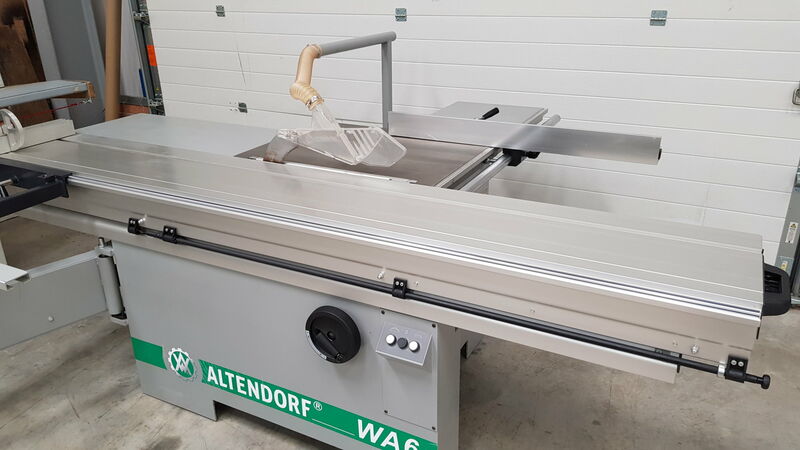

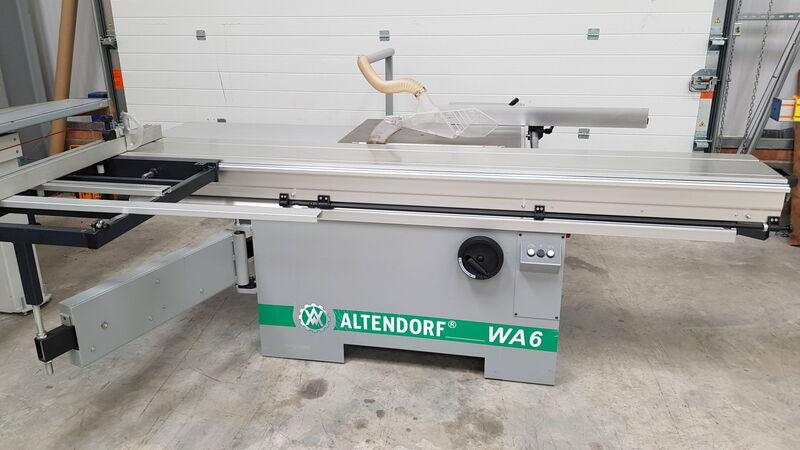

Used Altendorf WA6 2.6m

About the Used Altendorf WA6 2.6m

Sliding table length 2600mm - cutting length: 2500mm

Motor rating 4 kW (5.5 HP)

Scoring unit: 0.37 kW (0.5 HP)

Saw blade diameter (saw blade drops down completely below the table level) max. 315 mm

Cutting dept max. 87 mm, at 45° max. 60 mm

Cutting width on the rip fence 1000 mm

Height adjustment: manual with hand wheel

Tilt adjustment: manual with hand wheel 0 – 45°

Crosscut-mitre fence, stops to 2600 mm

Two extraction sockets top 50 mm, bottom 100 mm

Machine weight 450 kg

Table height 910 mm

Used Altendorf WA6 2.6m Features

Tick bullet point The proven Altendorf double roller carriage with steel bar guidance
Tick bullet point The Multi chamber system within the sliding table as with the other altendorf saws, for maximum rigidity of the double roller carriage
Tick bullet point Manual tilt adjustment
Tick bullet point Manual rise and fall adjustment
Tick bullet point WA6 can be used to cut materials such as Wood, Plastics, non-ferrous metals
Tick bullet point Safety hood with extraction hose above the main saw blade
Tick bullet point Extraction supports on the machine pillar
Tick bullet point Cross-cut mitre fence for accurate angle and mitre cutting in a single function. Cutting lengths 95-2600mm. Mitre angle infinitely adjustable from 0-49 degrees
Tick bullet point Rip fence smooth and precise
Tick bullet point Scoring unit

Used Altendorf WA6 2.6m Options

Tick bullet point Delivery
Tick bullet point Commissioning
Tick bullet point Training
Tick bullet point Large Overhead Guard
