Used CML J250 Rip Saw

Back arow icon Previous Page


About this used CML J250 Rip Saw

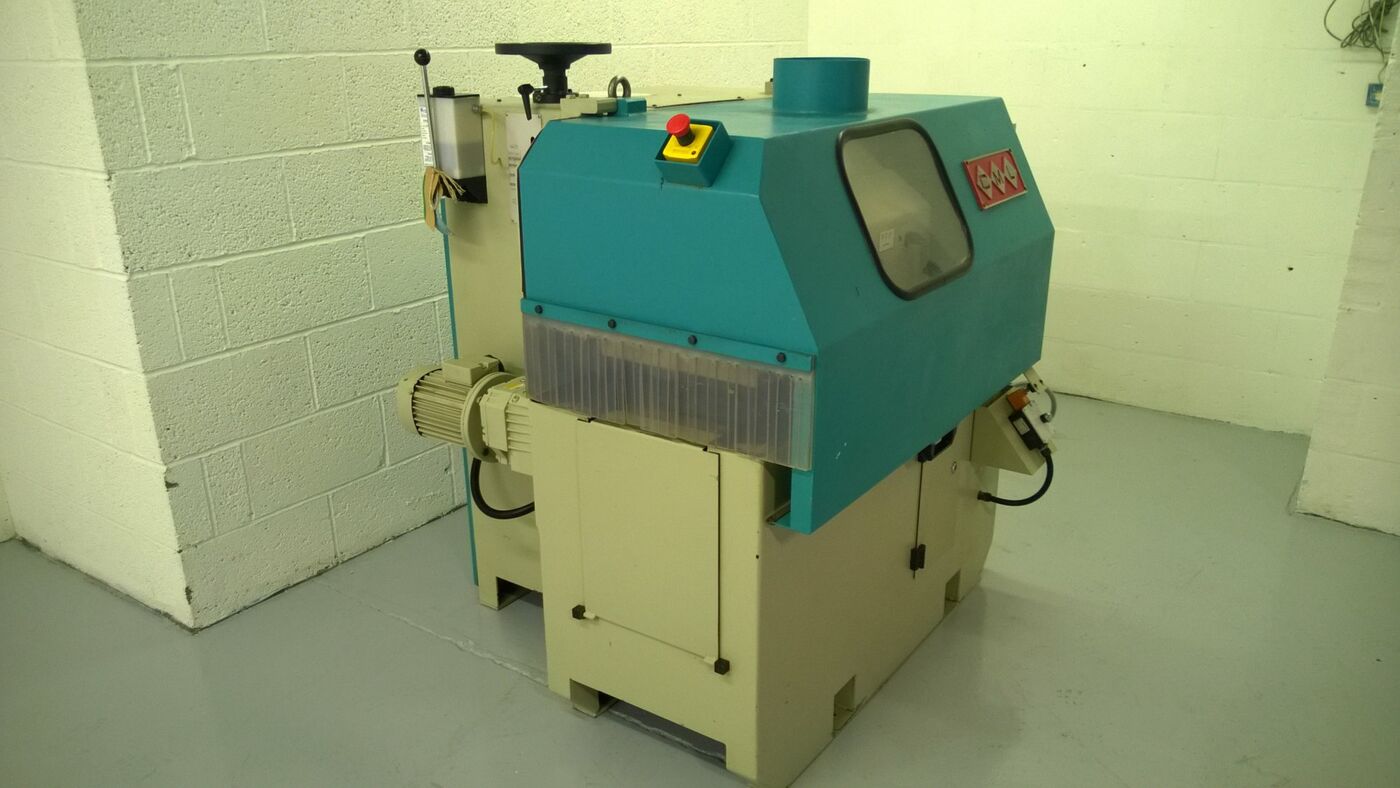

Here we have a 2011 CML J250, this machine is in excellent condition and has had very little use. The machine is currently in our premises so please call us on 01455 840224 to arrange a viewing.

Specifications are subject to changes.

Machine Features

Tick bullet point Technical details CML Multilame J250
Tick bullet point Voltage 400V / 50Hz
Tick bullet point Dust connection (main) 200mm diametro - 30 m/s (portata) - 3400Mc3/h
Tick bullet point Weight machine 1200Kg
Tick bullet point Dimensions machine Length 125cm
Tick bullet point Width 117cm
Tick bullet point Height 130cm
Tick bullet point Blades motor power Hp 20-25 / Kw 15-18.5
Tick bullet point Feeding belt motor power 0.75Kw
Tick bullet point Feeding belt speed 12 a 24 Mt/1”
Tick bullet point Group pressure motor power 0.75Kw
Tick bullet point Max passage width planks 550 mm
Tick bullet point Feed belt width 250mm
Tick bullet point Blades shaft rotation 3500 RPM

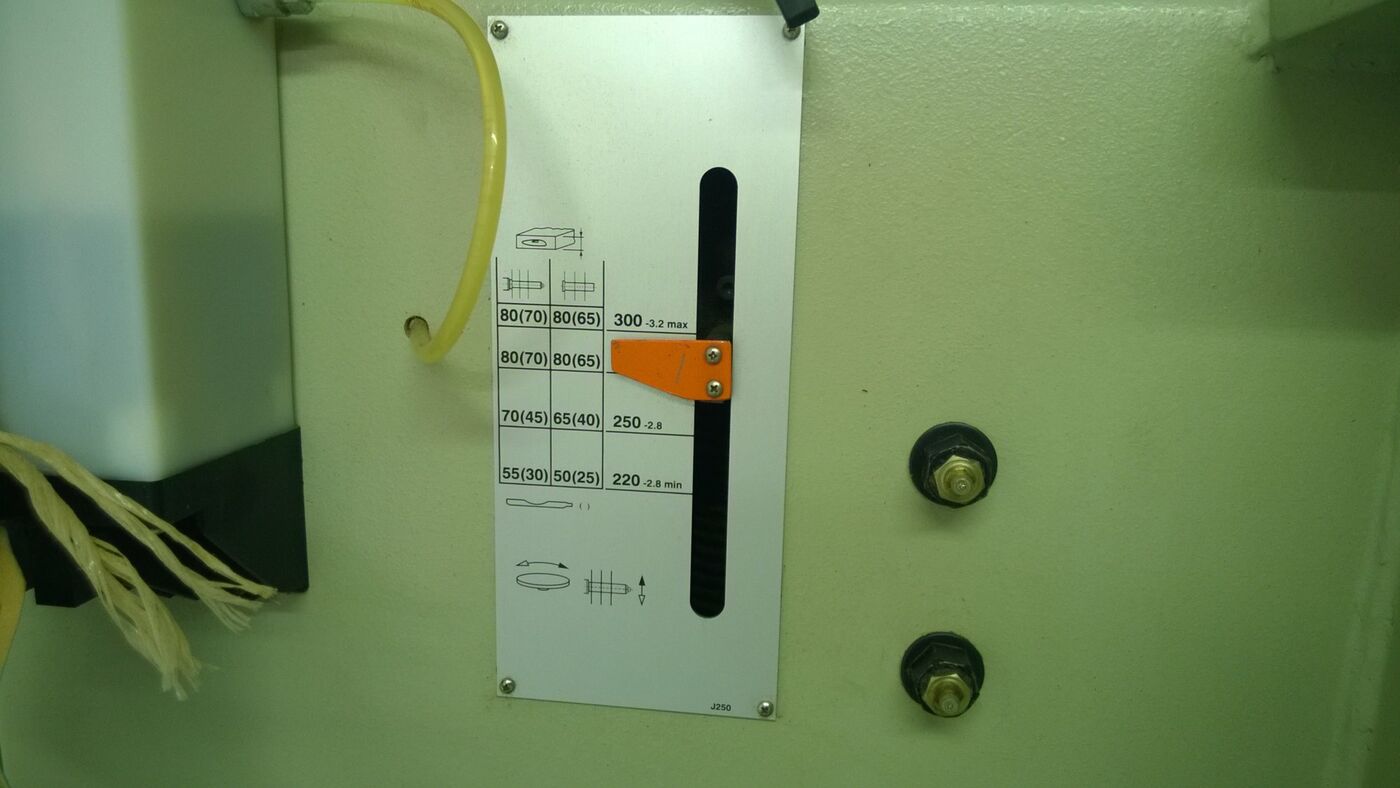

Tick bullet point Max. cutting thickness 80mm (with blade da D.300mm)
Tick bullet point Min. cutting thickness 20mm
Tick bullet point Min. planks length 500mm (280mm optional for short pieces)
Tick bullet point Max. distance between fixed saws 220mm
Tick bullet point Table working height from floor 750mm
Tick bullet point Sound camping material able to reduce noise lower 15db
Tick bullet point Chain belt automatic lubrication
