Used Griggio GF21

Back arow icon Previous Page

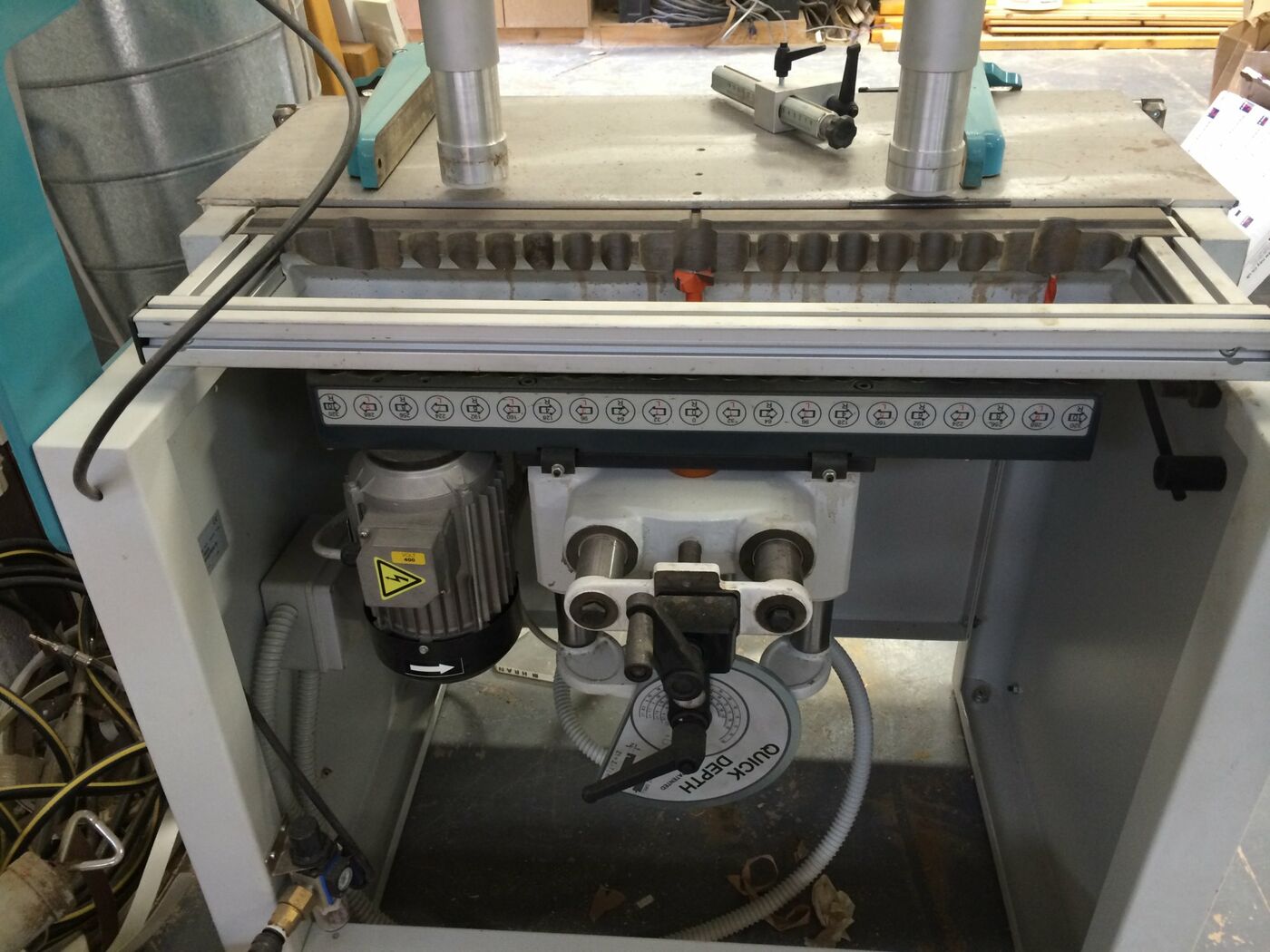

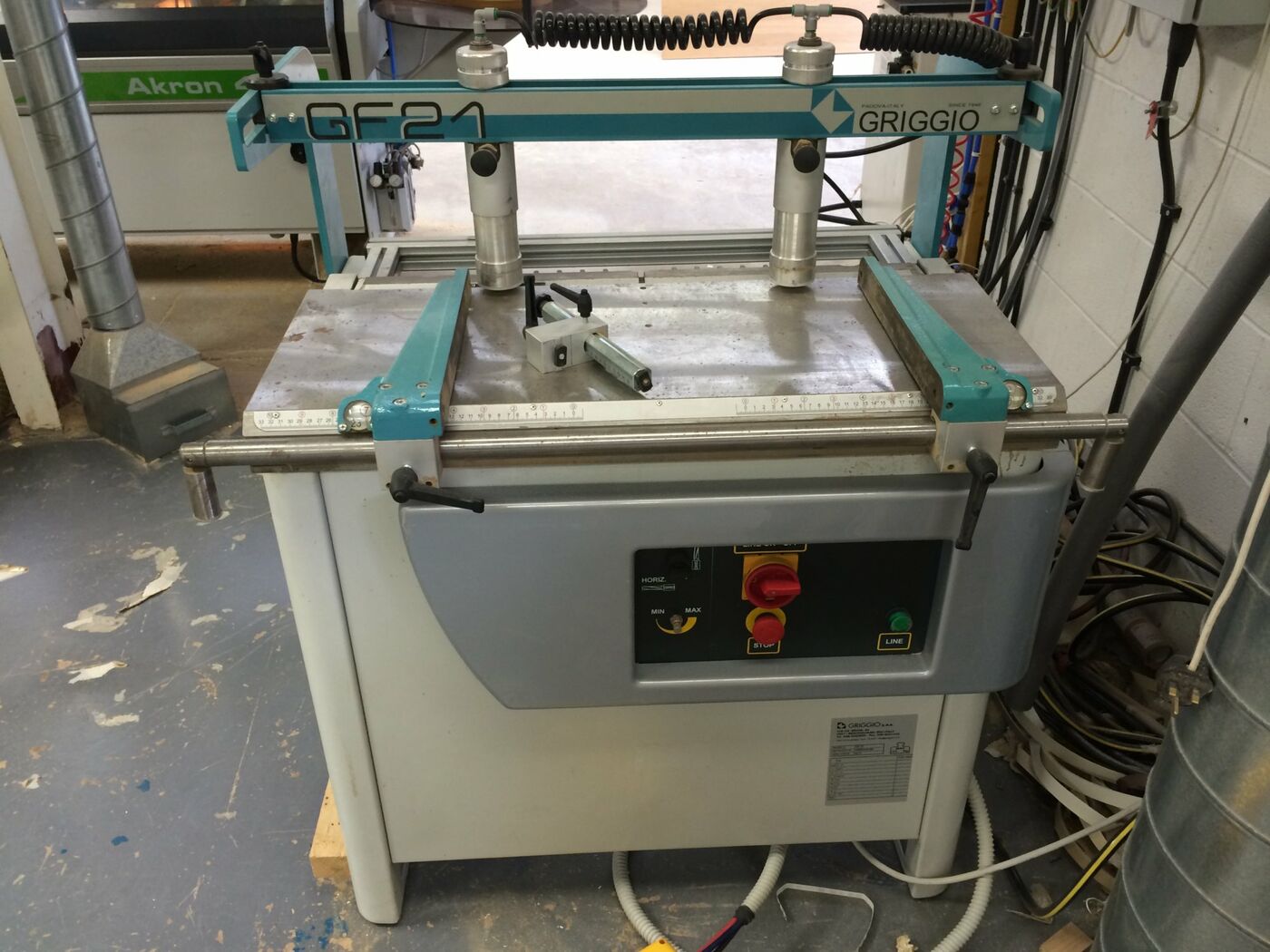

Good Quality Multi-boring machine with 21 Spindles from the Italian Manufacturer Griggio

The machines are equipped with a comprehensive set of attachments, please see features below.

Used Griggio GF21 Features

Tick bullet point 3000 mm aluminium fence complete with 4 stops
Tick bullet point Made of 2 bars 1500 mm each with bayonet fitting
Tick bullet point Folding side fences on the table
Tick bullet point 2 self-levelling pneumatic hold-down clamps
Tick bullet point 2 front vertical stops for vertical-horizontal drilling coupling
Tick bullet point Pneumatic tilt of the drilling head with lockingin any position and reference stop at 45°
Tick bullet point 'Quick depth' device for adjustment and direct reading of boring depth
Tick bullet point Quick fitting chucks
Tick bullet point 'CE' standards

Used Griggio GF21 Specification

Center distance between 2 chucks 32 mm
Center distance between outer chucks 640 mm.
Max. drilling depth 65 mm
Max. thickness of the piece 70 mm.
Motor power 2 hp (1,5 kw)
Net weight 250 kg.
