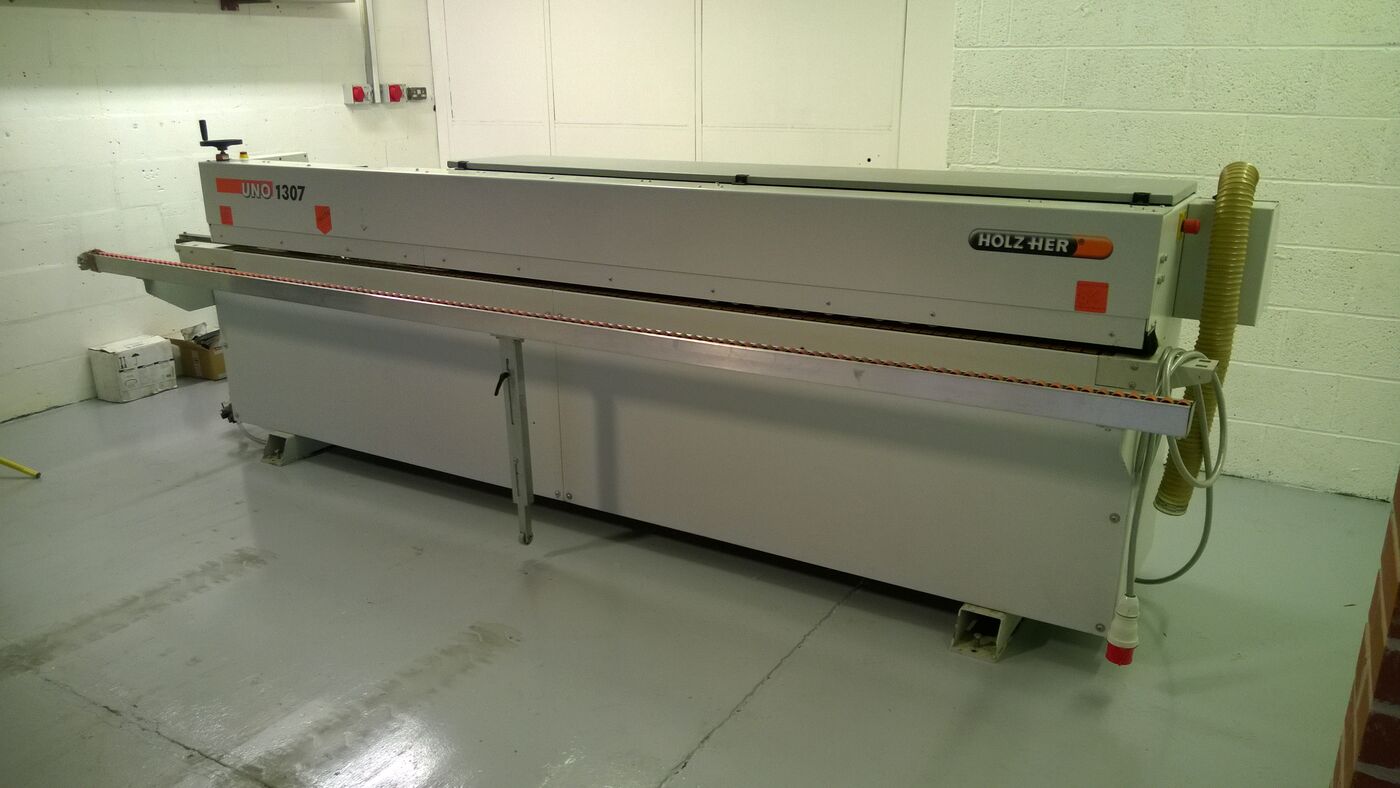

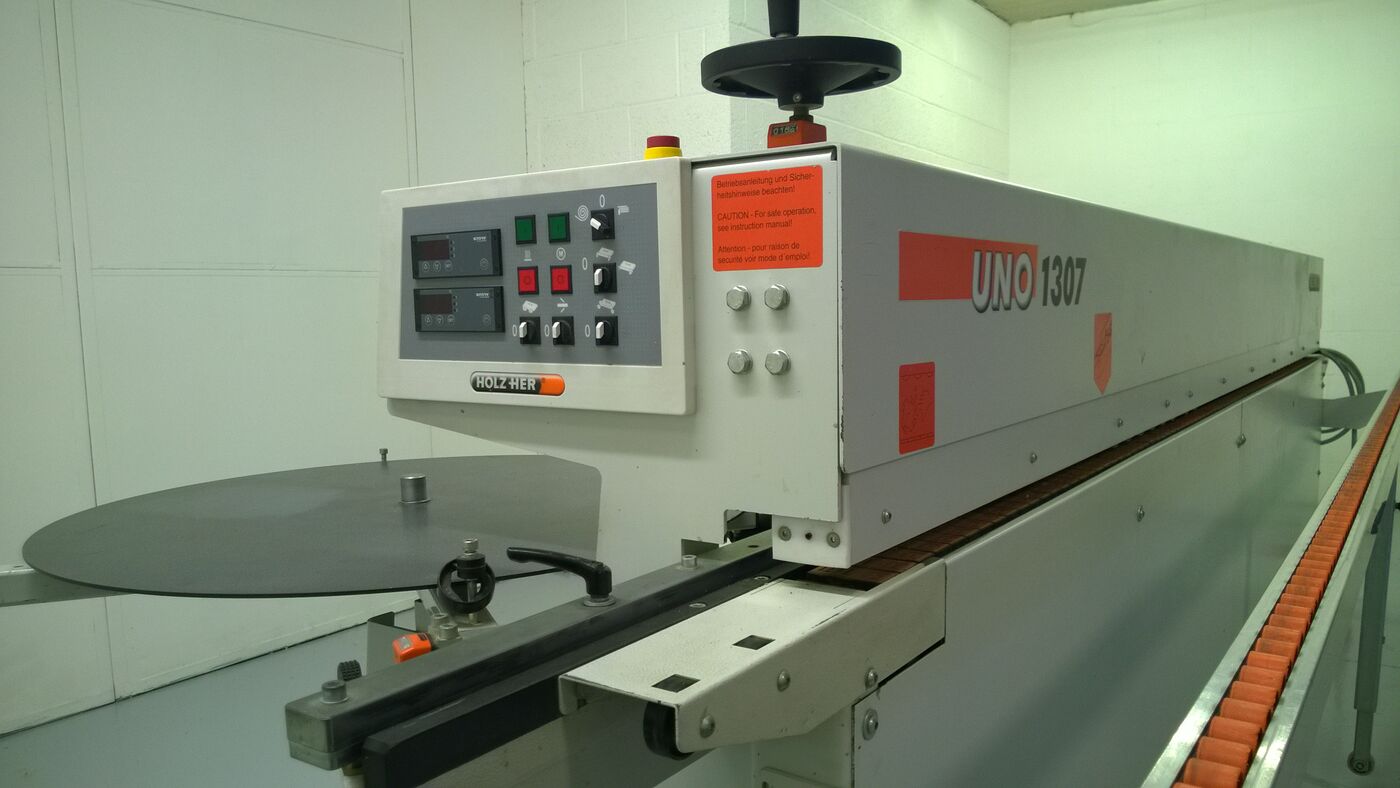

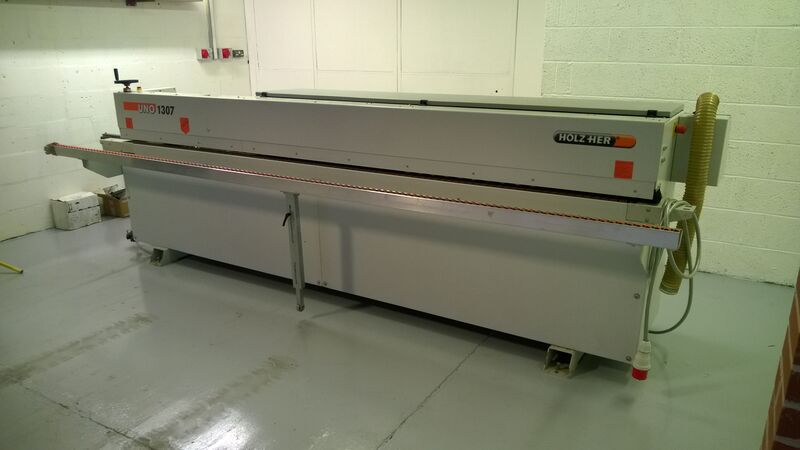

Used Holzher UNO 1307

About this used Holzher UNO 1307

The UNO 1307 is the consistent continuation of the successful UNO series. It offers high tech in minimum space and concentrates on the significant aspects for high quality edgebanding. The Pre-milling unit and additional copy cutter unit (Corner Rounding) supplements the performance range; post-formed profiles are also possible. In their class the UNO 1307 models provide above-average productivity and features.

Used Holzher UNO 1307 Features

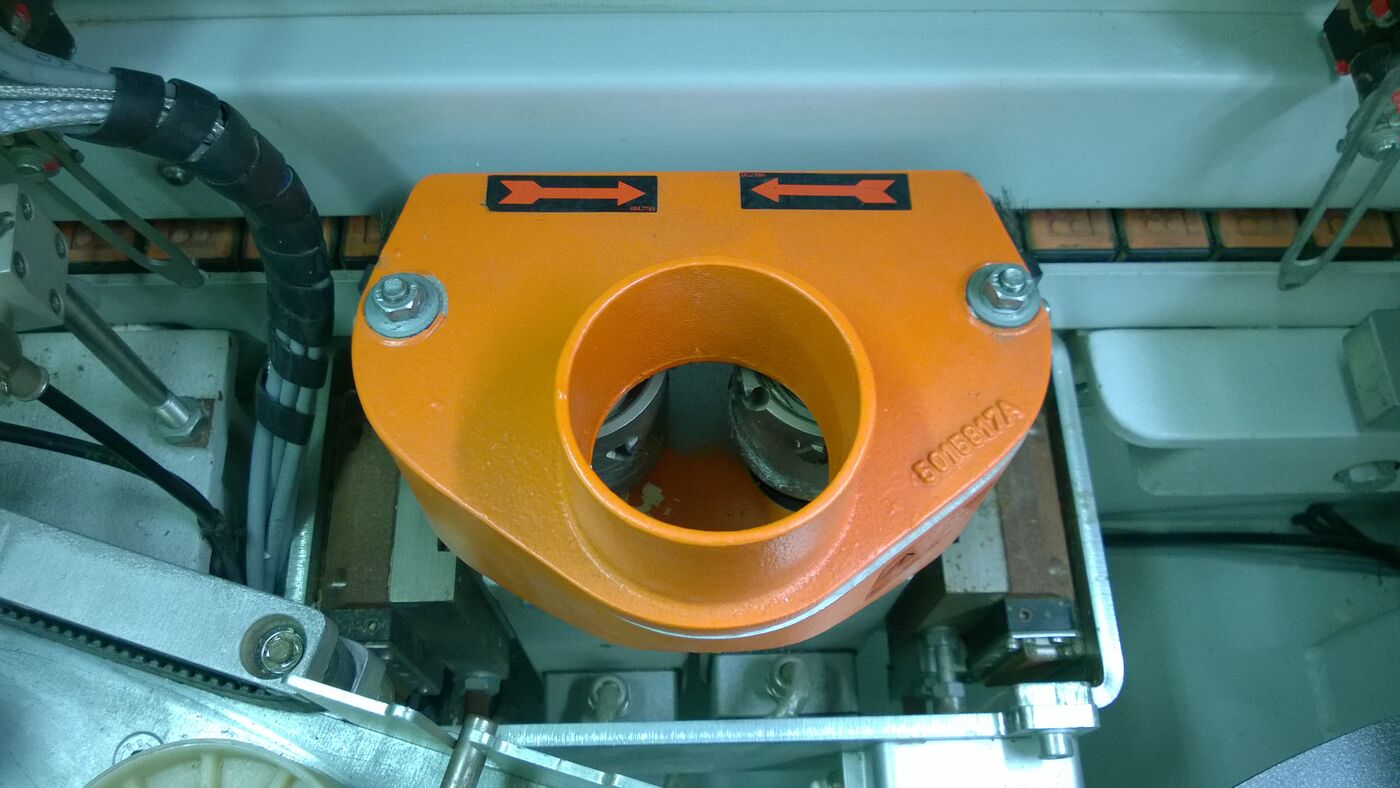

Tick bullet point A standard feature on the UNO 1307 is a jointing cutter unit with two cutter motors and adjustable run-in linear stop
Tick bullet point The short over-all length is a primary advantage of the machine
Tick bullet point Central height adjustment for pressure bridge
Tick bullet point Extendable workpiece support up to 600mm
Tick bullet point High performance units, some laid out with sensors for cut-length and coiled edging up to 3 mm
Tick bullet point Powerful feed motor for driving transport chain
Tick bullet point Cutting in forward and backward direction using diamond-coated tools (teeth = 1) ensures perfect results
Tick bullet point Pneumatic plunge control for first cutting head on pre-milling
Tick bullet point Patented ProLock screw-in clamping system ensures rapid tool change
Tick bullet point Run-in linear stop with 3 mm adjustment range

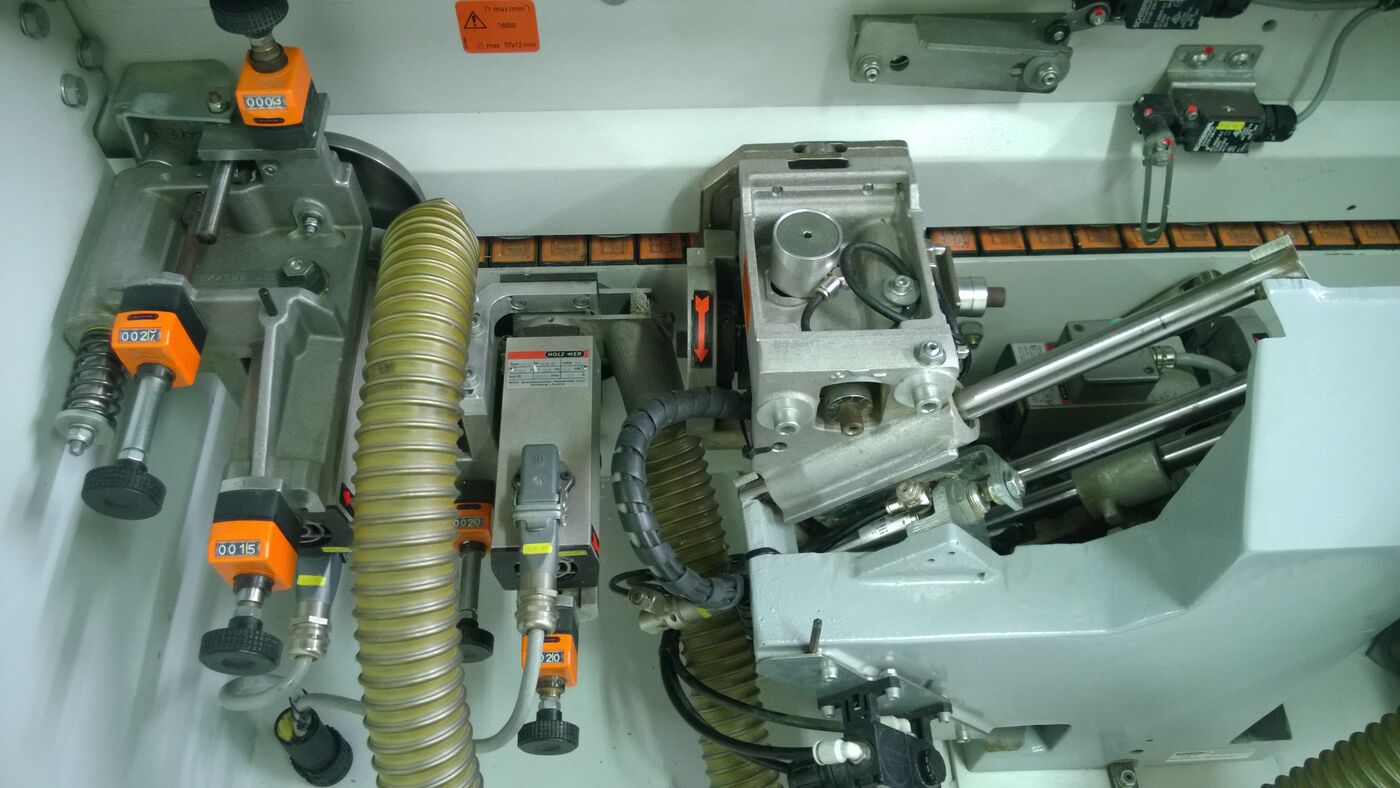

Tick bullet point Corner copying unit for processing vertical front and rear edges up to 3 mm. Tools for radii up to 3 mm and cutters up to 45 degrees – postformed profiles possible.
Tick bullet point Selection switch for jointing cutter (ON/OFF)
Tick bullet point Precise temperature control with two heating circuits (with nozzles for glue application system)
Tick bullet point Simple magazine switch-over from cut-length to coil edging
Tick bullet point Cutting unit can be switched off for pointed or angled work
Tick bullet point Selection switch for corner copying (ON/OFF)
Tick bullet point Selection switch for optional flat scraper (ON/OFF)

Used Holzher UNO 1307 Specification

Total length in mm 4191
Feed rate in m/min 10
Connection dia. in jointing cutter 1801 in mm 80
Connection dia. in jointing cutter 1825 in mm 100
Connection dia. with scraper unit 1929 (optional) in mm 80
Air flow rate in m3/h 930
Static vacuum in Pa 1650
Minimum air velocity in m/s 20
Compressed air connection in bars 6
Max panel height mm 50
Max edge banding material height mm 55
Min width of Panel mm 65
Min length of Panel mm 160
Min / Max Thickness of Edgebanding material 0.4 - 3mm
