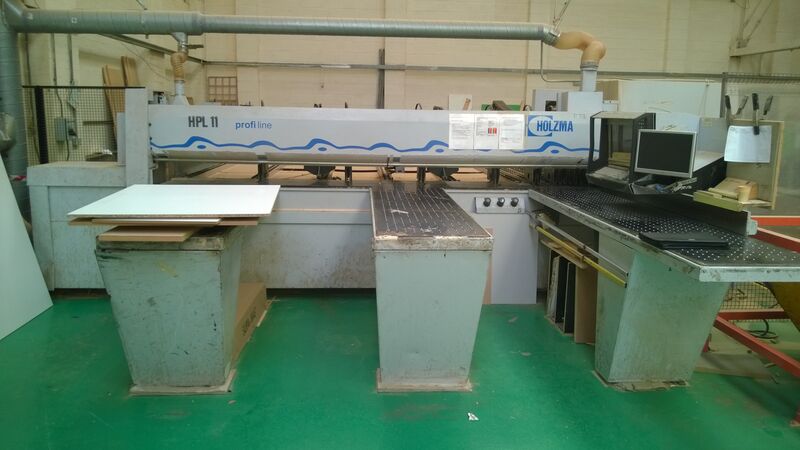

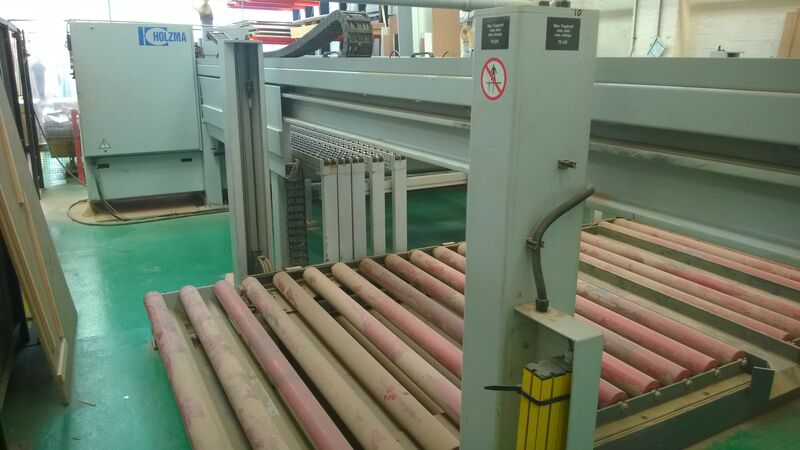

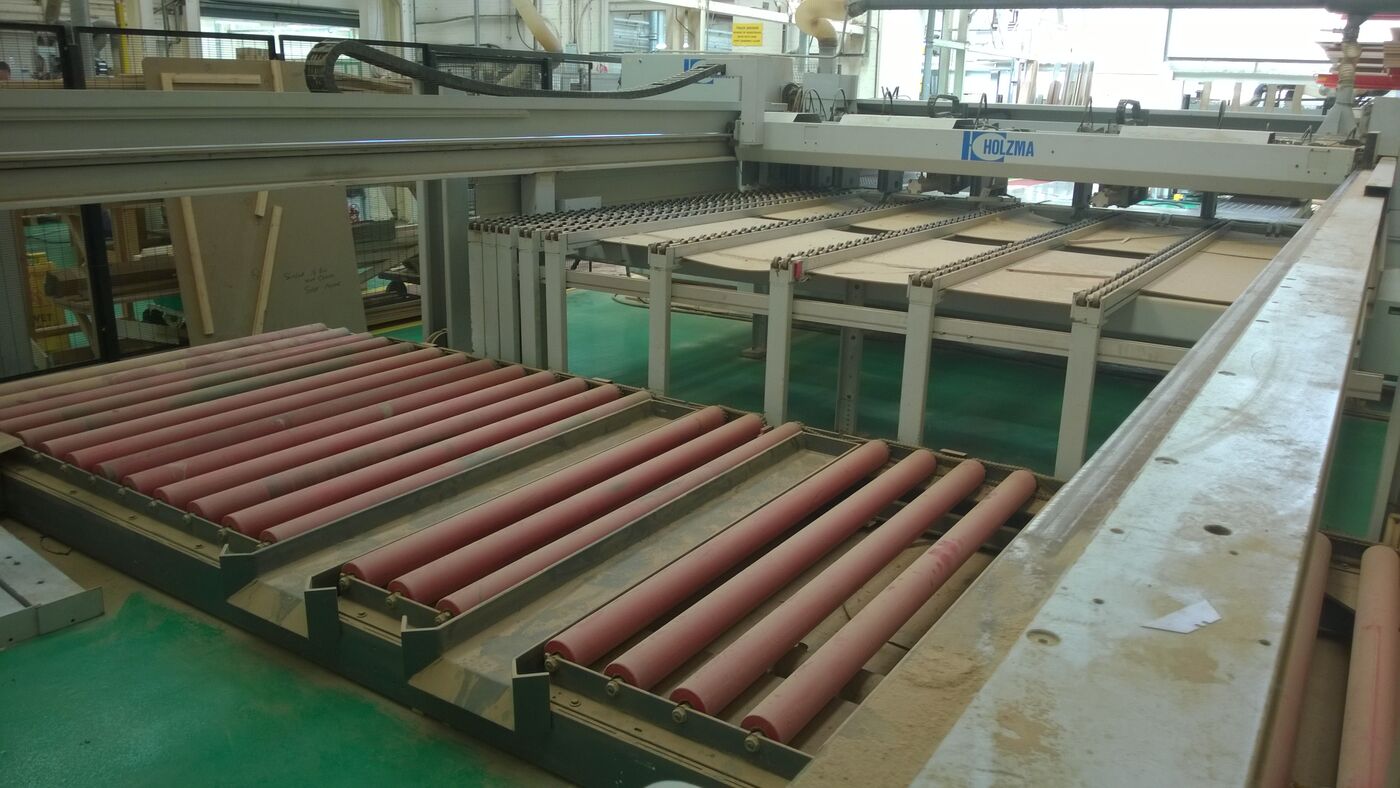

PANEL CUTTER, type HPL 11 Automatic panel saw for the splinter-free and accurate cutting of faced and un-faced panels of derived timber products and products to be processed as such.

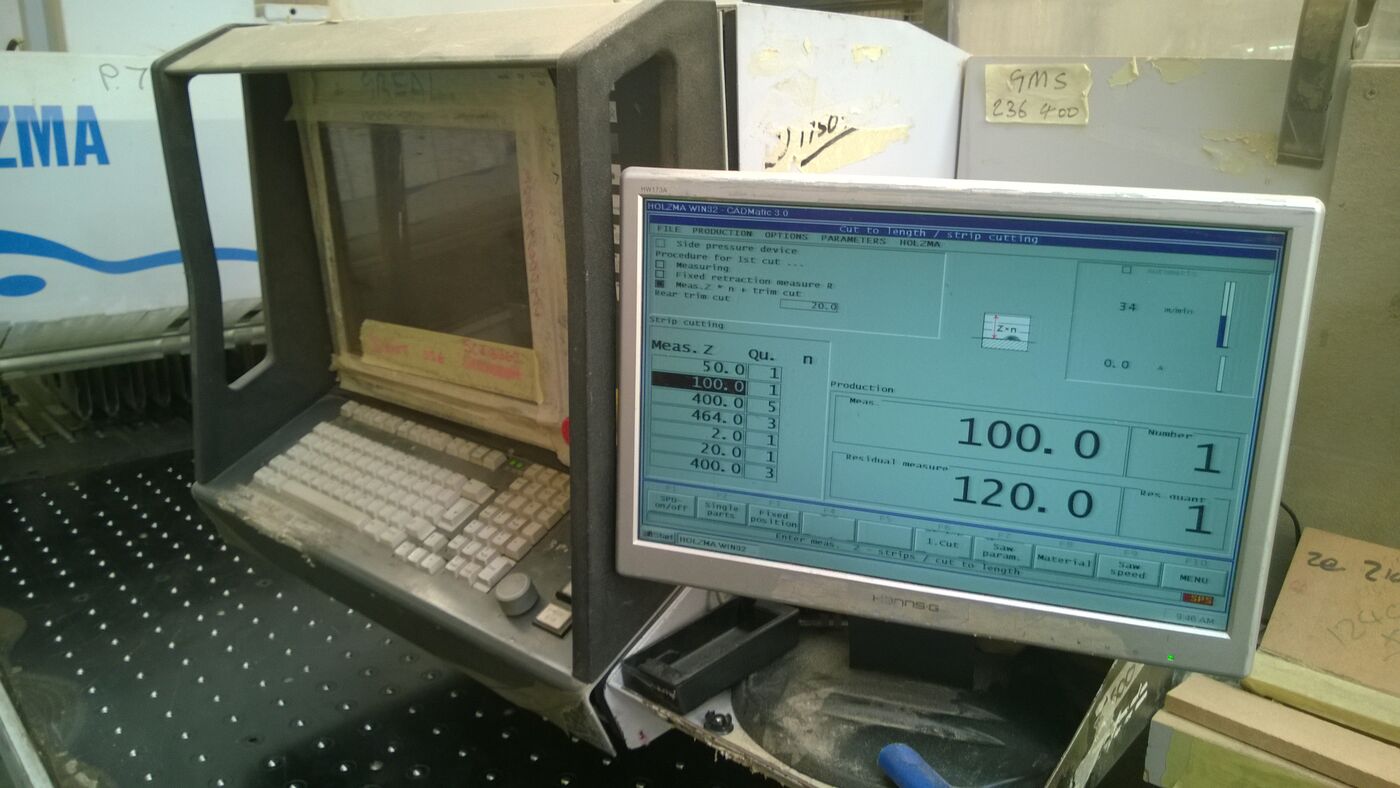

Electronic control CADmatic version 3.0 The Holzma CADmatic is a machine control based on an industrial PC system. Graphic operator instructions as well as the optimised machine sequences are centrally coordinated by the
control. The CADmatic is networking-capable and can be connected by means of the appropriate options with any current data network. An integration into existing data bases can be offered as well.

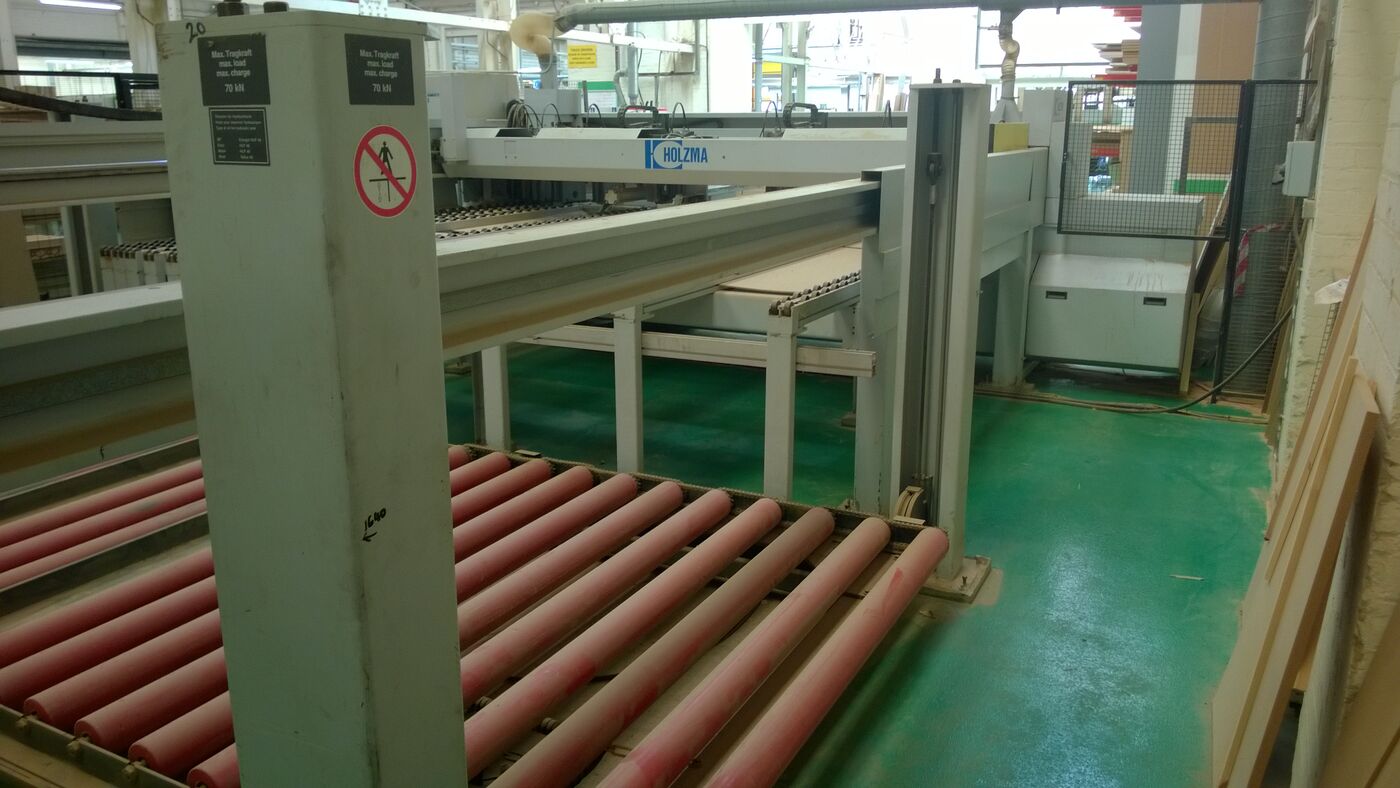

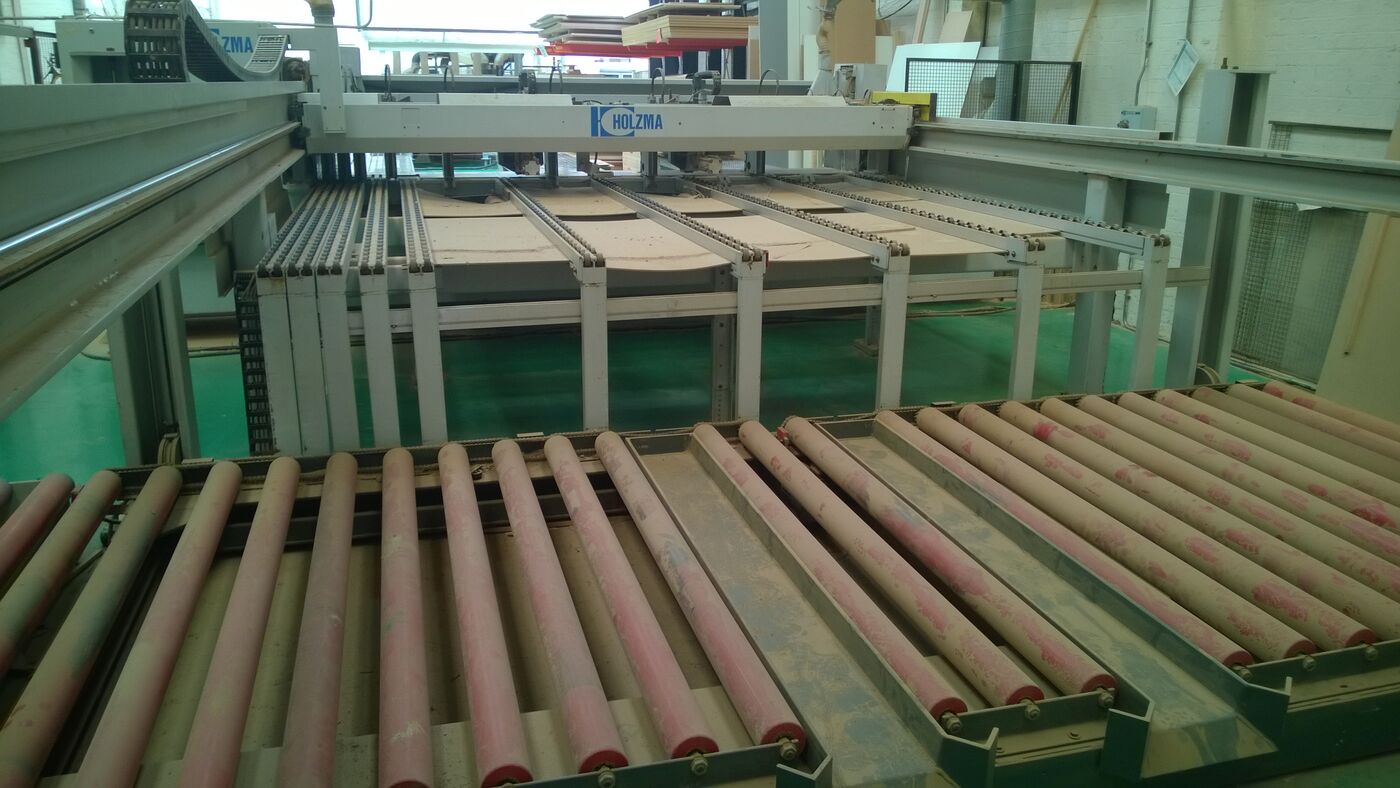

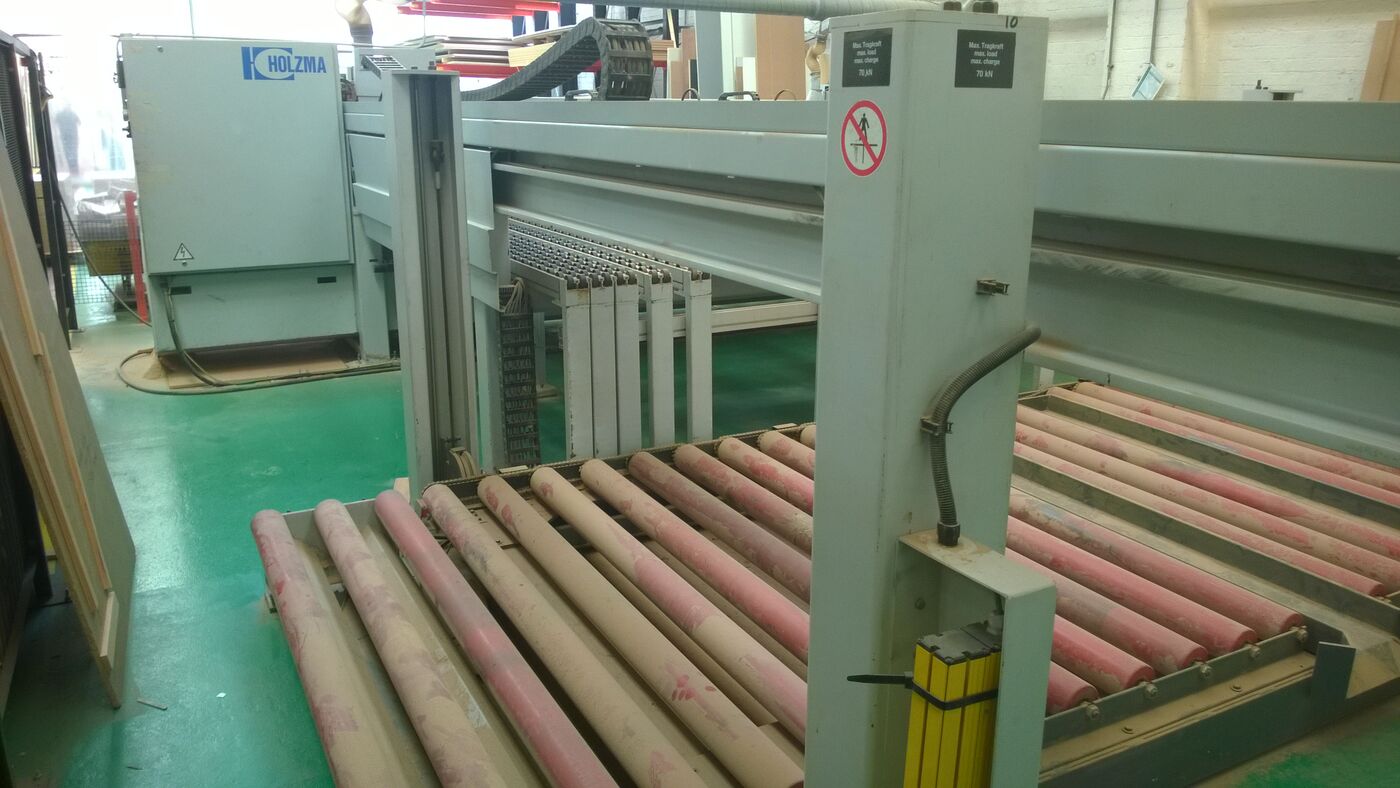

Machine has rear loading.
|Main saw motor||(18.3 HP) 13,5 kW|
|Scoring saw motor||(3 HP) 2,2 kW|
|Max. opening of clamps||(5.1 inches) 130 mm|
|Saw blade diameter||450 mm|
|Saw blade projection||(4.9 inches) 125 mm|
|Saw carriage speed forward||5 - 125 m/min|
|Saw carriage speed reverse, constant||125 m/min|
|Program fence speed forw./reverse max.||80 m/min|
|Compressed air||6 bar|
|Voltage||400 V/50 cycles|
|min. speed at extract. outlet approx.||28 m/sec|
|diametre of dust channel connection||200 mm|
|diametre of pressure beam connection||150 mm|
|diametre of pressure beam connection||80 mm|
|Cutting length||(149.6 inches) 3800 mm|
|Cutting width (travel distance of progam fence)||(149.6 inches) 3800 mm|
|Lift table 3800 x 2200 mm, max. load||7 to Stack height of lift|
