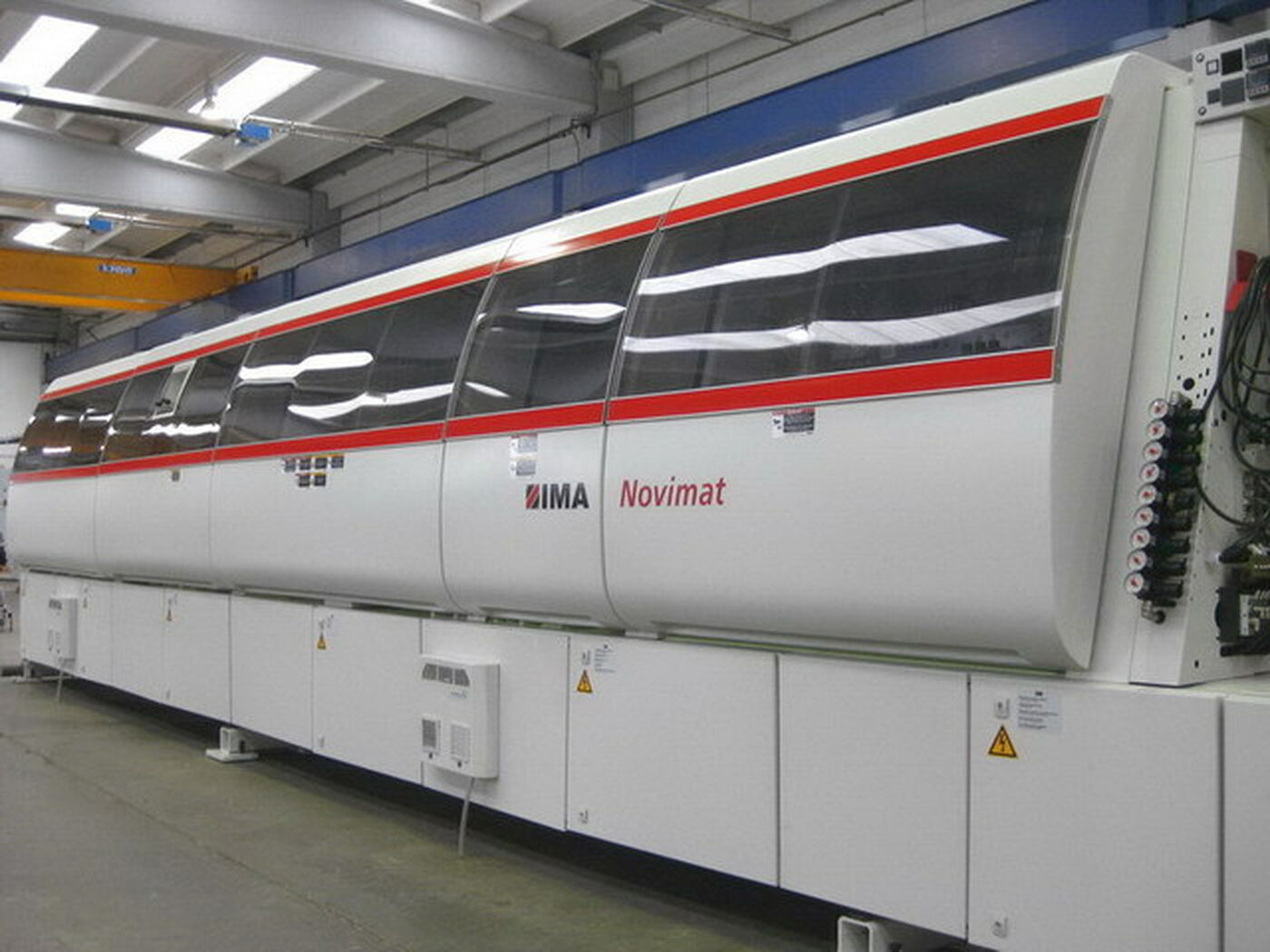

Used IMA Novimat I / G80/650/R3

Machine Features

Tick bullet point SINGLE-SIDE EDGE BANDER (LEFT-side)
Tick bullet point Edges (tape) thickness in rolls (min/max) mm 0,3 - 3
Tick bullet point Panels thickness (min/max) mm 8 - 60
Tick bullet point Numerical Control ICOS Open
Tick bullet point Feeding speed (adjustable) m/min 6 - 30
Tick bullet point Top pressure system with rubber belt
Tick bullet point Spraying unit (Anti-sticking liquid)
Tick bullet point In-feed fence, adjustable by N.C.
Tick bullet point Pre-milling Unit (vertical joint trimmers) by N.C. 08.378 (2 x Kw 4,5)
Tick bullet point Lamps to heat the workpieces side + 2 x Glueing Units (Hot Melt) w/Quick Melt Uni) 04.1570
Tick bullet point Spraying Unit (for anti-release liquid)
Tick bullet point Band Pressure zone
Tick bullet point Edge coils supporting unit (No. 16 reels)
Tick bullet point Snipping (end-cutting) unit 08.42/30/B (2 x Kw 0,66 - Pneu 0° - 25°) 30 m/min
Tick bullet point Fine Trimming unit (Multi-profile, by N.C.) 08.0587 (2 x Kw 1)
Tick bullet point Spraying Unit (for sliding liquid)

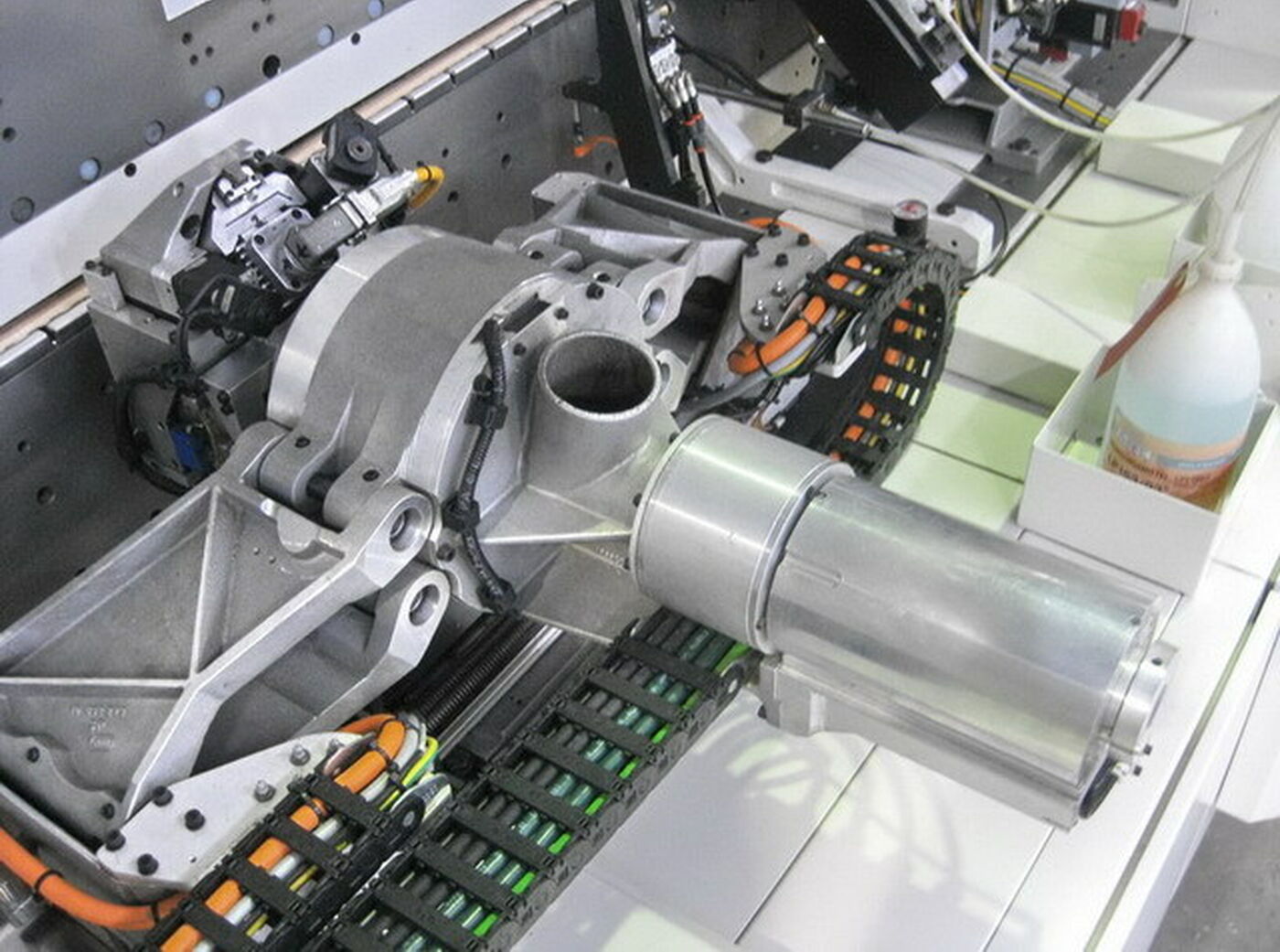

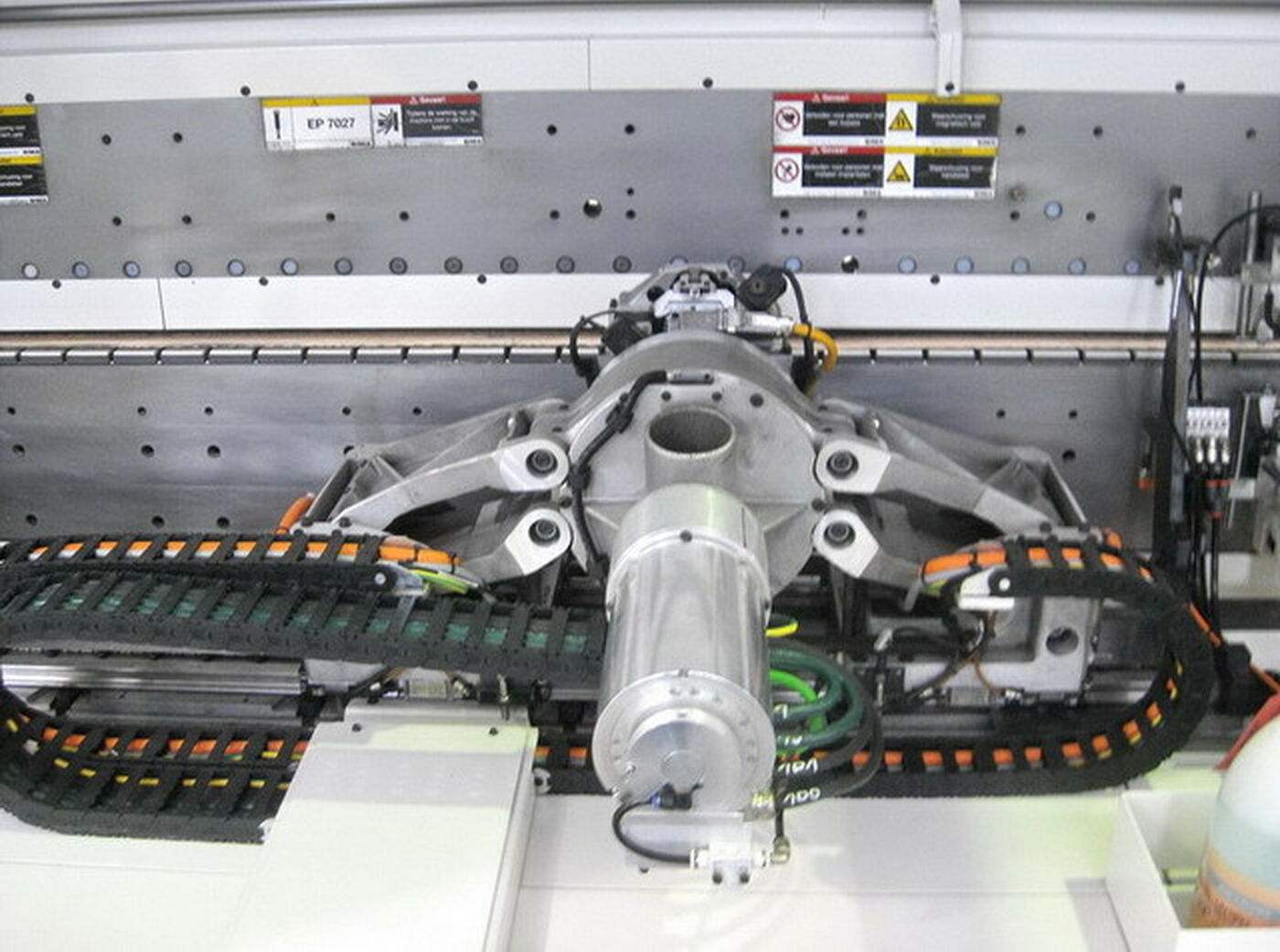

Tick bullet point Multi-Profile Copying unit by N.C (fine contour trimming) KFA 30 (08.355) 1 x Kw 0,5 (30 m/min)
Tick bullet point Buffing Corner Rounding unit (Contour Buffing) 08.604 (4 brushs x Kw 0,25)
Tick bullet point Profile edge scraping unit (Multi-profile, by N.C.) 08.516
Tick bullet point Glue scraping unit 08.521
Tick bullet point Spraying Unit (for polishing liquid)

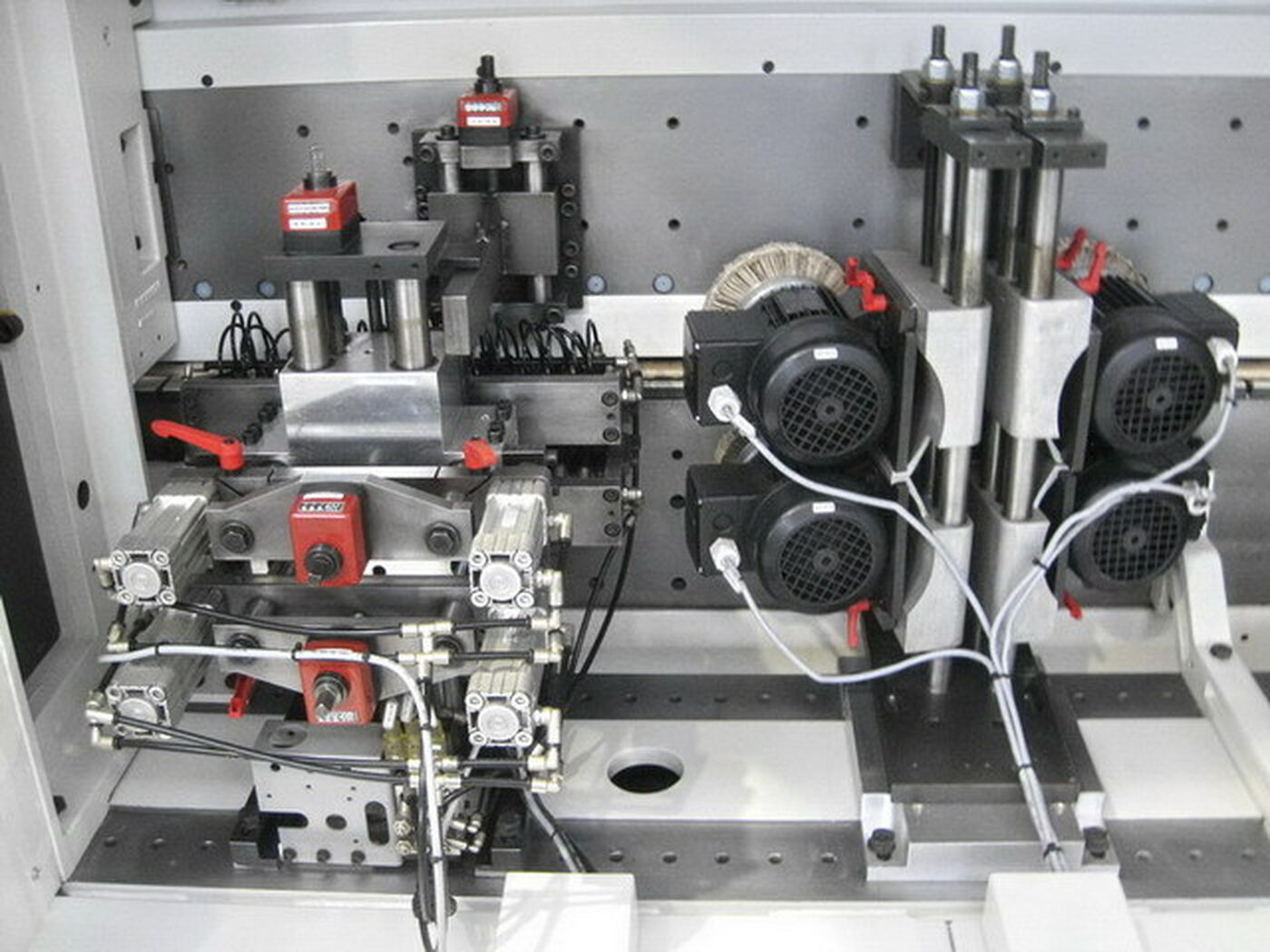

Tick bullet point Buffing unit 08.617-4 (4 x Kw 0,18)
Tick bullet point Smoothing unit with spheres 08.53
