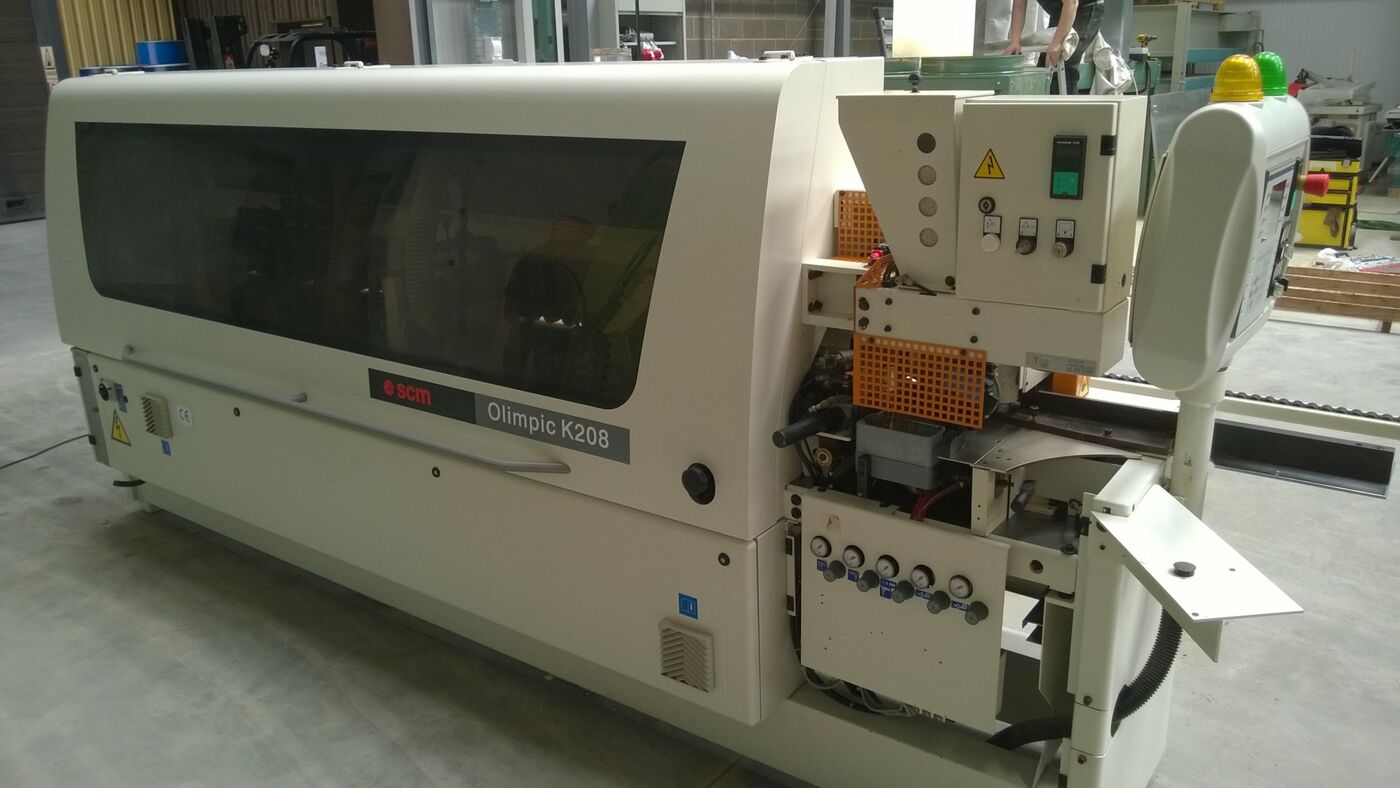

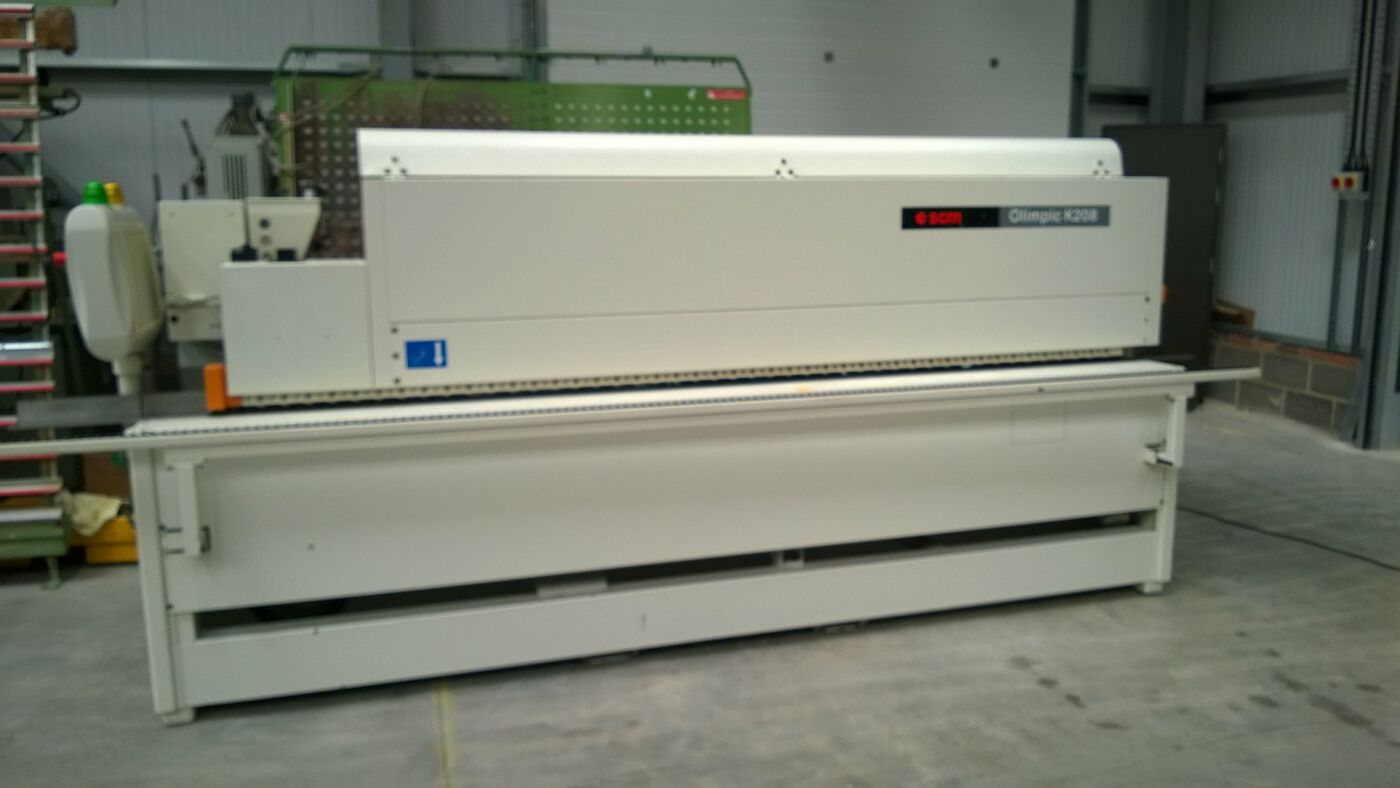

Used SCM K208 ER

About this used SCM K208 ER

A medium to Heavy duty Edgebander from Italian manufacturer SCM, which allows the processing of edgbanding material from 0.4mm - 10mm Solid wood. The machine also have a Corner rounding unit. The machine is in very good condition and has had very little use....

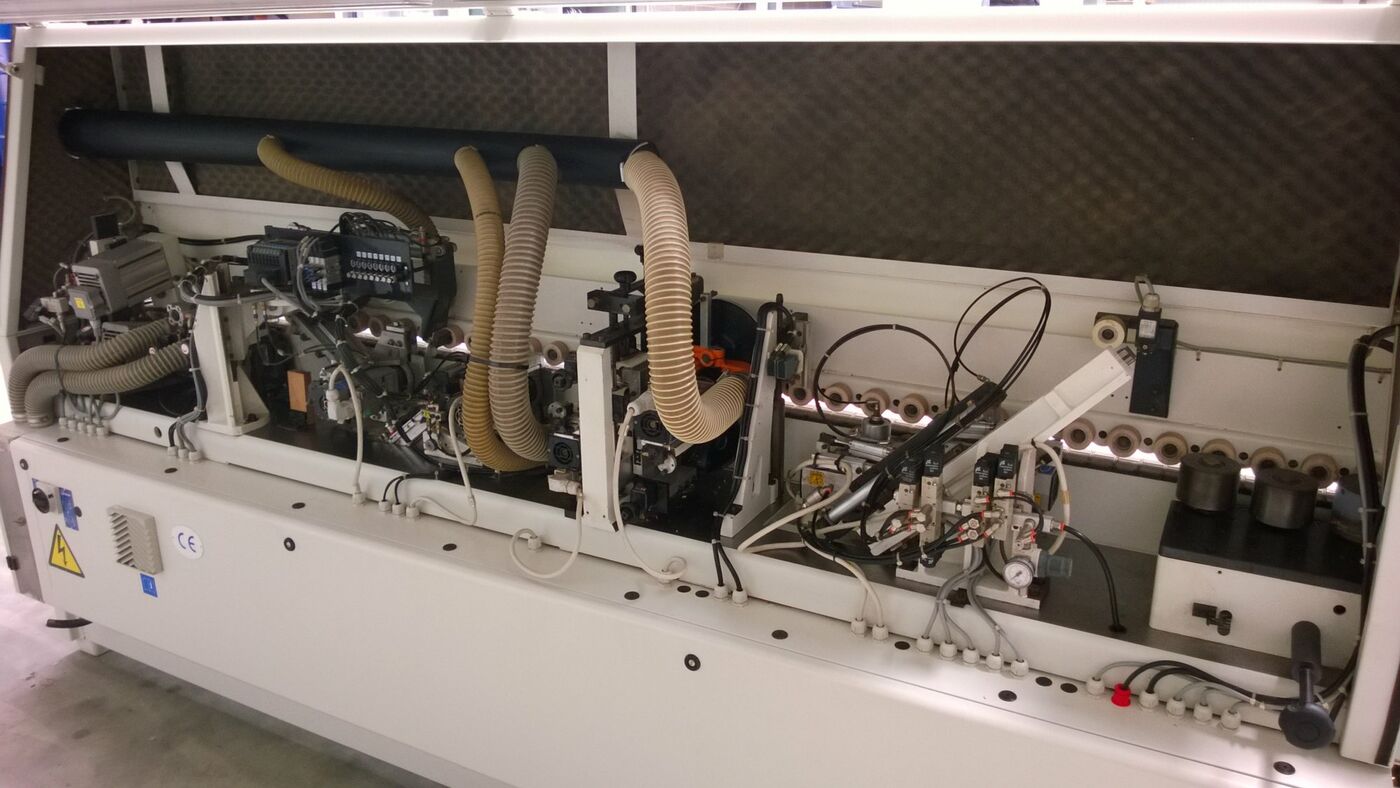

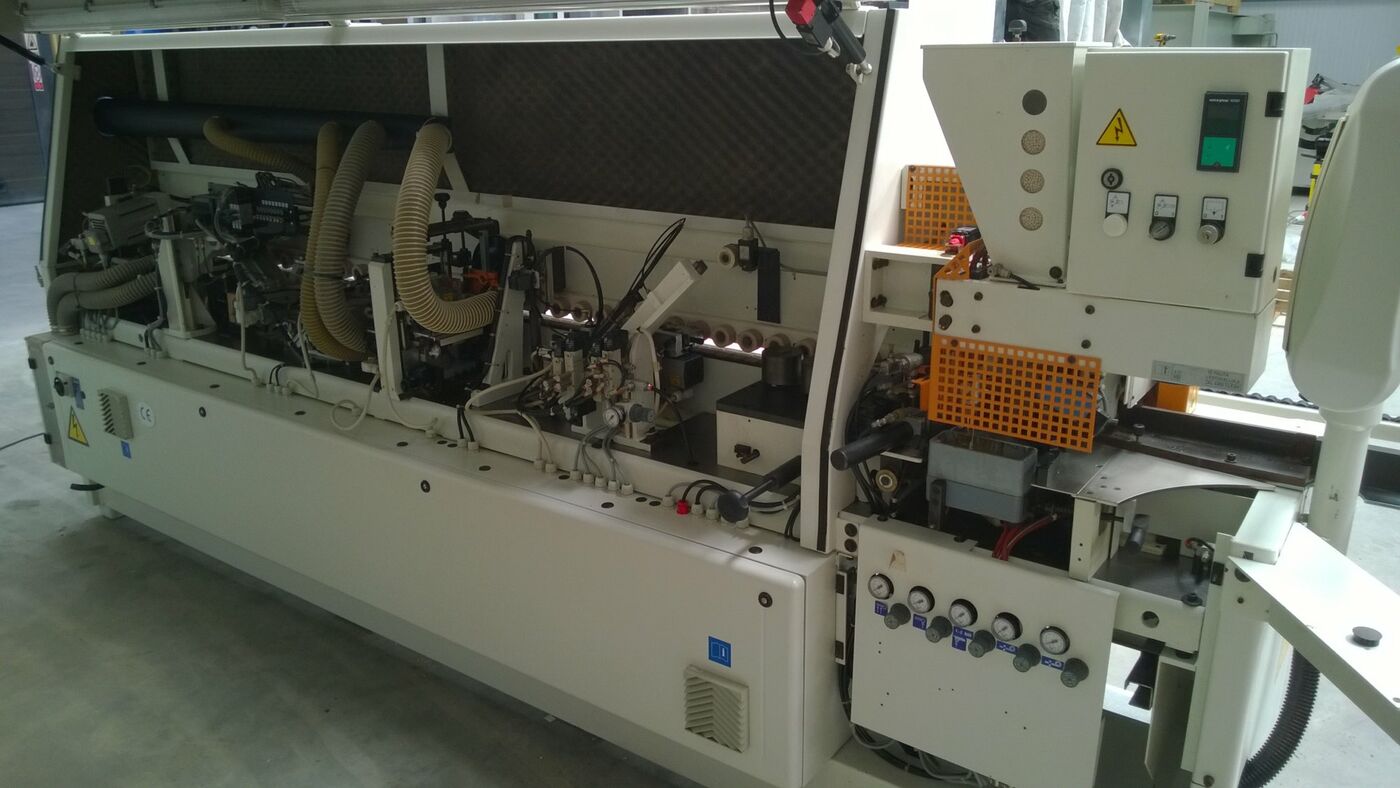

Used SCM K208 ER Features

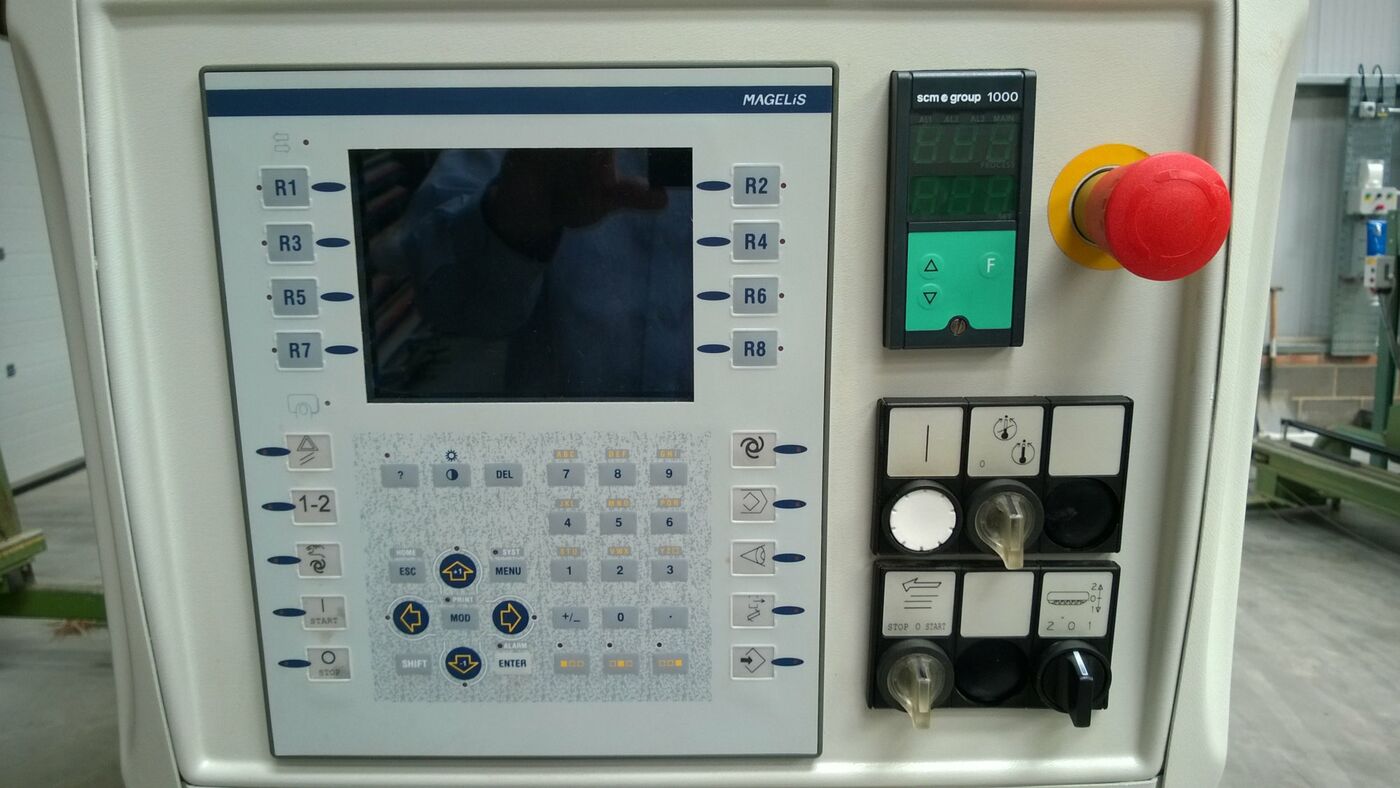

Tick bullet point Base structure made of high rigidity tubular steel to guarantee an excellent support for the operating groups and the guides of the feed. Mobile control panel.
Tick bullet point Feed track sliding on 1 cylindrical guides 1 flat to guarantee straight cutting and resistance to heavy side pressure loads.
Tick bullet point Automatic loader for rolled edges and shear device for cutting thickness up to 3 mm
Tick bullet point Glue pot unit, including:
Tick bullet point Teflon coated glue pot to facilitate glue substitution
Tick bullet point Digital thermostat on glue spreader
Tick bullet point Device for automatic recovery of unused glue
Tick bullet point Automatic temperature kick down after temporary non use
Tick bullet point Horizontal pressure unit with 3 rollers of which the first is cylindrical, power driven, with pneumatic pressure adjustment
Tick bullet point The second and third have pneumatic pressure adjustment and opposed coincity to guarantee perfect adherence to the entire panel edge.
Tick bullet point End cutting unit with 2 independent high frequency motors on prismatic guidways and linear sliding pads that tilt from 0 – 15 degrees, easy setting-up and fixed to the pressure beam to avoid interference of scraps when activated, each is equipped with copying device.
Tick bullet point Trimming units tiltable from 0 – 15 degrees, with high frequency motors and large diameter horizontal and vertical copying device, complete with 70 x 12 cutters with 4 throwaway knives
Tick bullet point Buffing unit with two independent tiltable motors
Tick bullet point Roller conveyor with extension support on entire length
Tick bullet point Speed of end cutters and trimmers 12,000 rpm with frequency converter
Tick bullet point Centralised dust-extracting outlet.
Tick bullet point Safety enclosure
Tick bullet point Electrical cabinet with main switch and thermal cut-out for motor protection.

Used SCM K208 ER Specification

Working height 10 – 55 mm
Thickness for rolled edges 0.4 – 3 mm
Thickness for edges in strips 10 mm
Min. Working length 140 mm
Feed speed 13 m min
Feed motor power 0.75 Kw
Pneumatic operating pressure 6 bar
Min. Distance between panel 500 mm
Installed power of the complete machine (“F” version) 6.7 Kw
Glue pot Heating time approx. 10 min
Glue granules capacity 1.5 Kg
Tiltable End Cutting Unit: Yes
Corner Rounding Unit “ROUND K” (“ER” Version only): Yes
Scraping Unit for Profiling of 3mm PVC Yes
Tiltable Brushing Unit: Yes
Hot Air Blower for PVC Edges: Yes
Physical Dimensions: 800mm Width x 4500mm Long
