Used SCM Pratix S15


Machine Sold

Sorry, this product has been sold and is no longer available. We have used machines arriving weekly so please call us to be first to hear about the very latest stock.

For sales and advice call today!

01455 840224

Send Your Enquiry
Book a Demo

Used SCM Pratix S15 Features

  • Centralised lubrication with manual Pump
  • Machines presetting for up to 2 vacuum pumps
  • Electrical cabinet with air conditioning
  • Electro-spindle with constant motor power
  • Additional flexibility with fast couplings which can also be retrofitted, for both vertical and horizontal spindles.
  • Boring unit with up to 7 independent vertical spindles and 4 horizontal spindles; no. 1 integrated saw blade along “X” direction (120 mm max. diameter).
  • High efficiency work table:a concentration of technologyStrong, easy to use and long-lasting with an aluminium work table.High performance work table capable of fully exploiting the vacuum pump capacity.
  • Vacuum distribution designed with powerful software for dynamic analysis and capable of controlling the flow of the air up to 250 km/h.

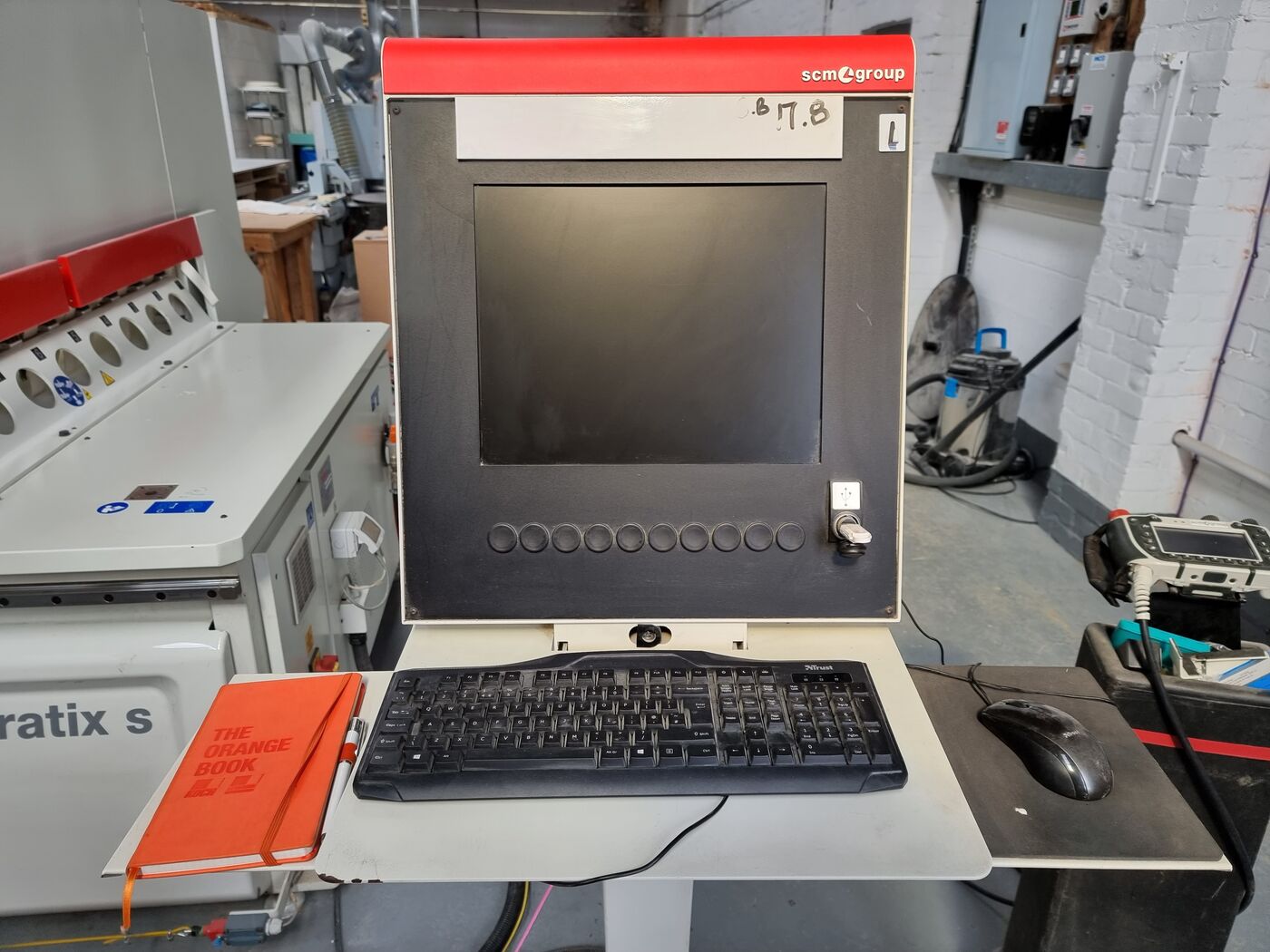

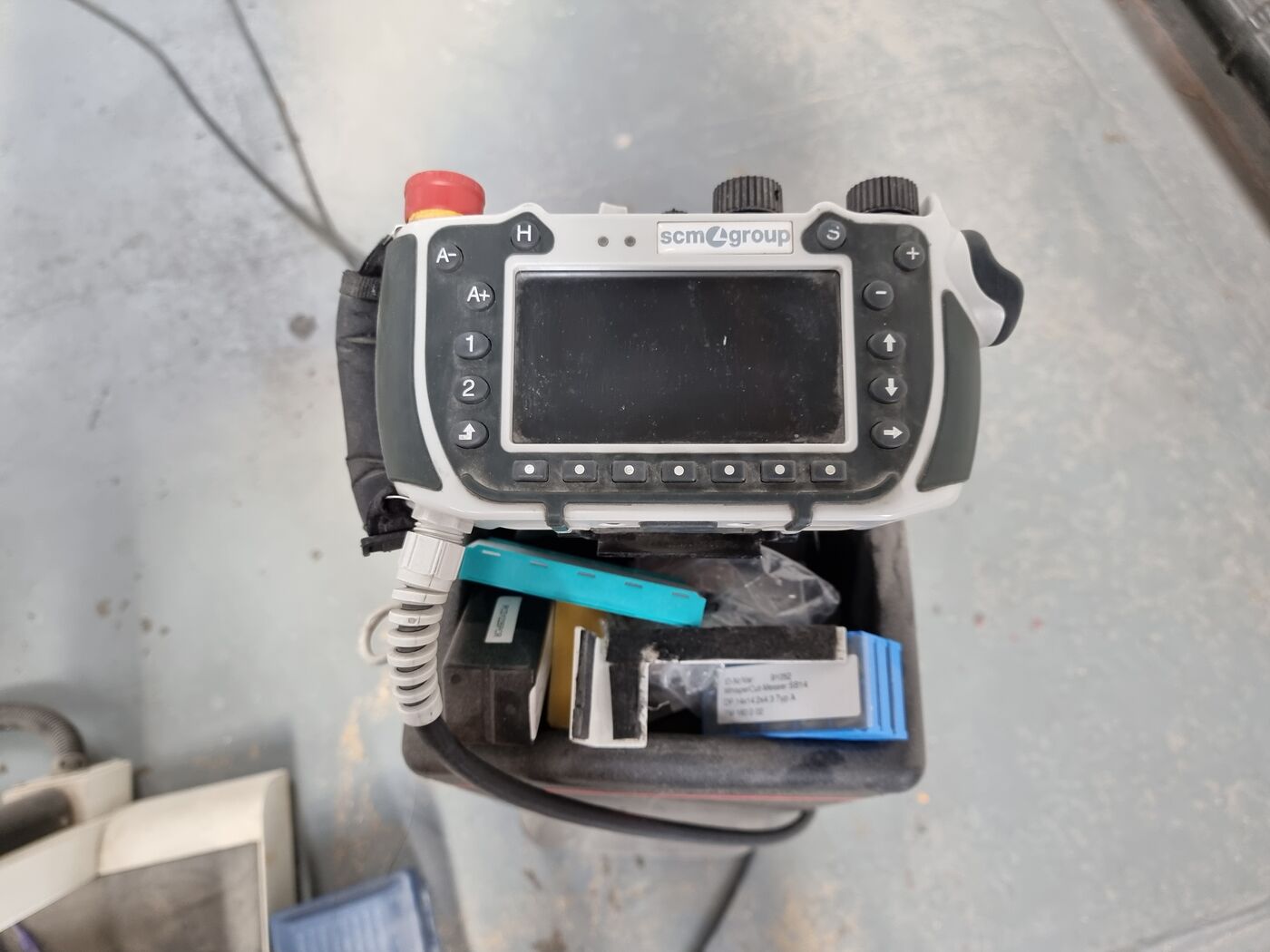

  • Ergonomic, easy-to-use with high technology thanks to the remote control with 7” LCD colour display with touch-screen functions, available as a standard feature.
  • Wide windows on both sides of the head

Used SCM Pratix S15 Options

  • Delivery
  • Installation

About the Used SCM Pratix S15

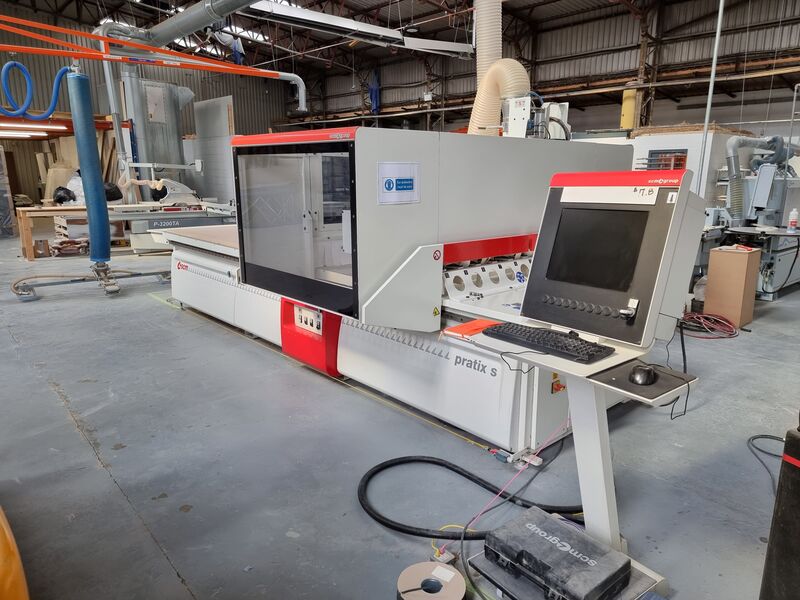

Excellent opportunity to purchase a 2012 SCM Pratix S15 Nesting CNC Router, in very good condition.

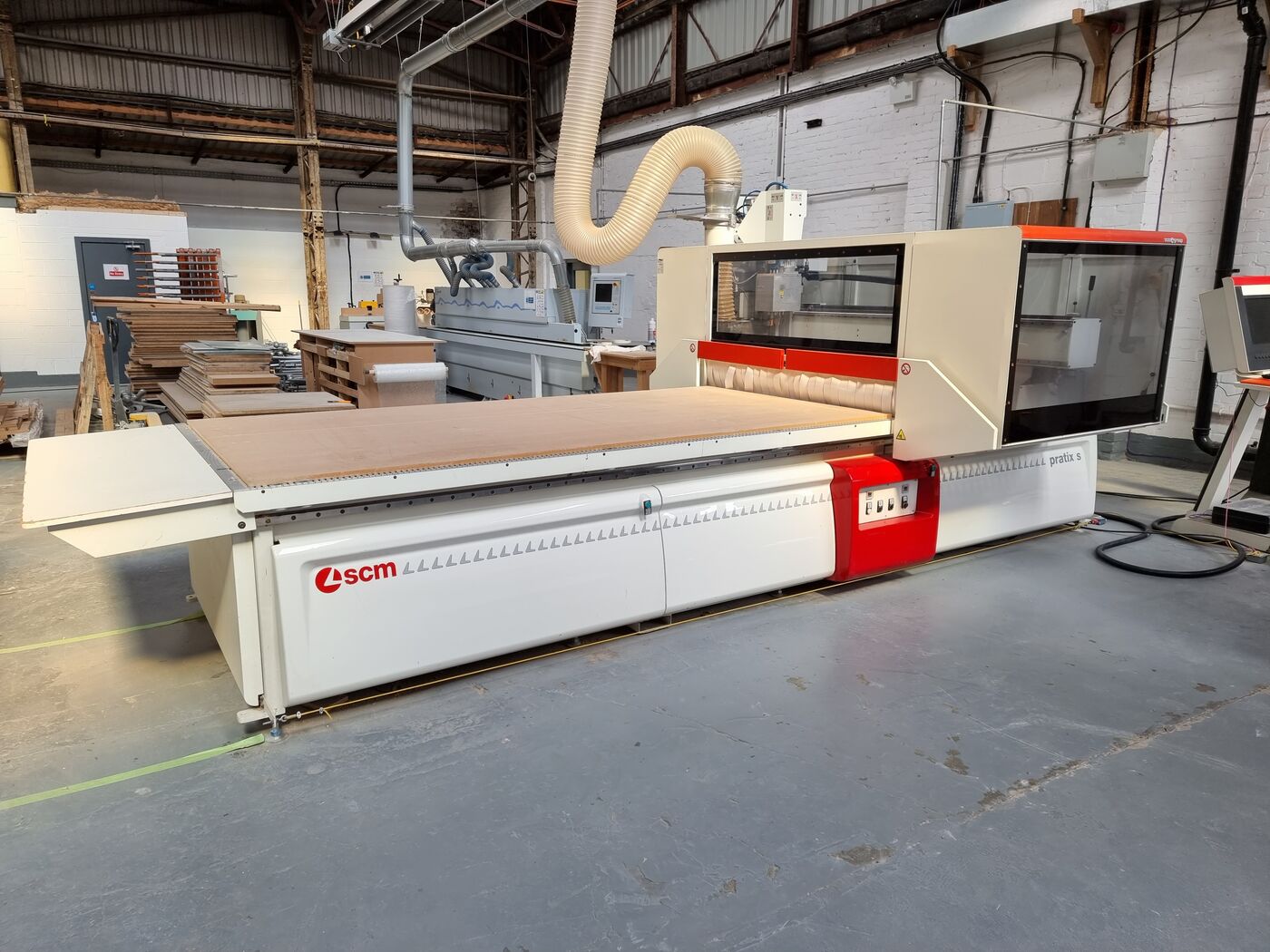

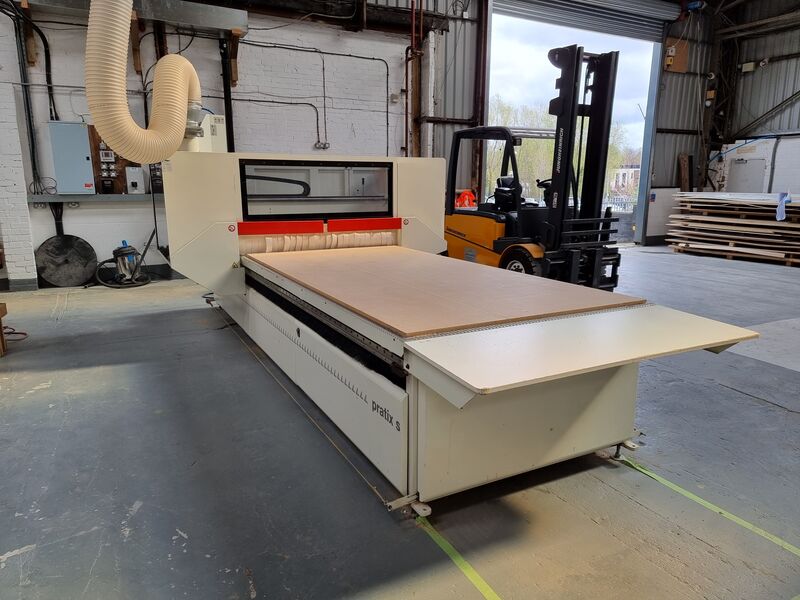

12'x 5' Table Nesting CNC, complete with all tools from previous owner.

Used SCM Pratix S15 Specification

Working area along X-Y-Z* axes 3686-1555-100mm
Stroke along X-Y-Z axes 4320-1985-240mm
Vectorial speed X-Y axes 35m/min
Work Table Type Multi function aluminium
No. of stops for A area 3
Vertical spindles 7 (5X-3Y) – 4.000 rpm
Motor power 2,2(3)
Std. motor power (S6) 5,5(7,5)
Max. speed. 24000rpm
Side tool changer 10 places
Installed motor power 23÷28,5
Compressed air consumption 400 nl/ min
Extraction air consumption 5300 M cubed / hour
Exhaust air speed 30m/ sec
Exhaust outlet diameter (electrospindle-borer) 250mm
Total machine weight 2200kg
NOTE: X distance between stops – Y max. panel width – Z workpiece thickness to be processed with all tools
