Used Sedgwick TE

Machine Sold

Sorry, this product has been sold and is no longer available. We have used machines arriving weekly so please call us to be first to hear about the very latest stock.

For sales and advice call today!

01455 840224

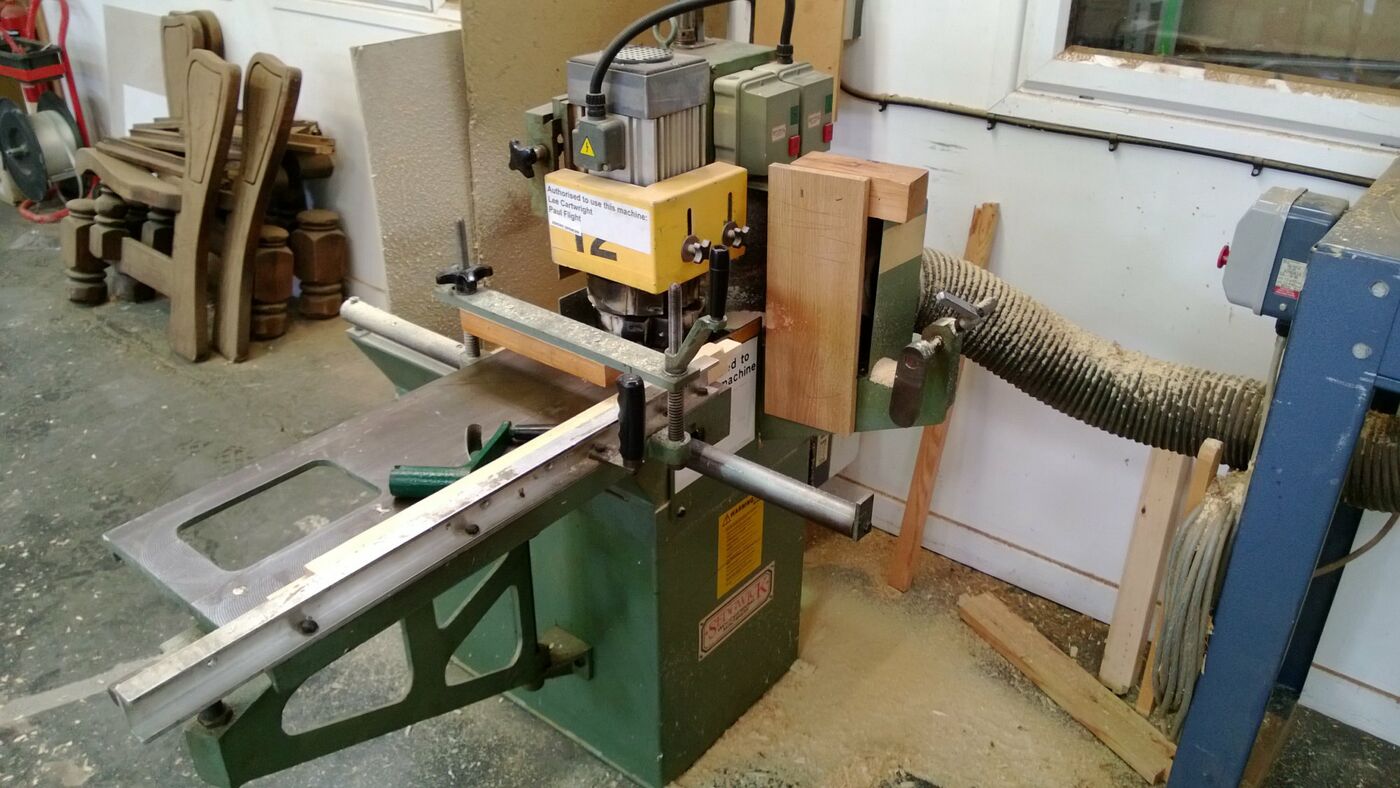

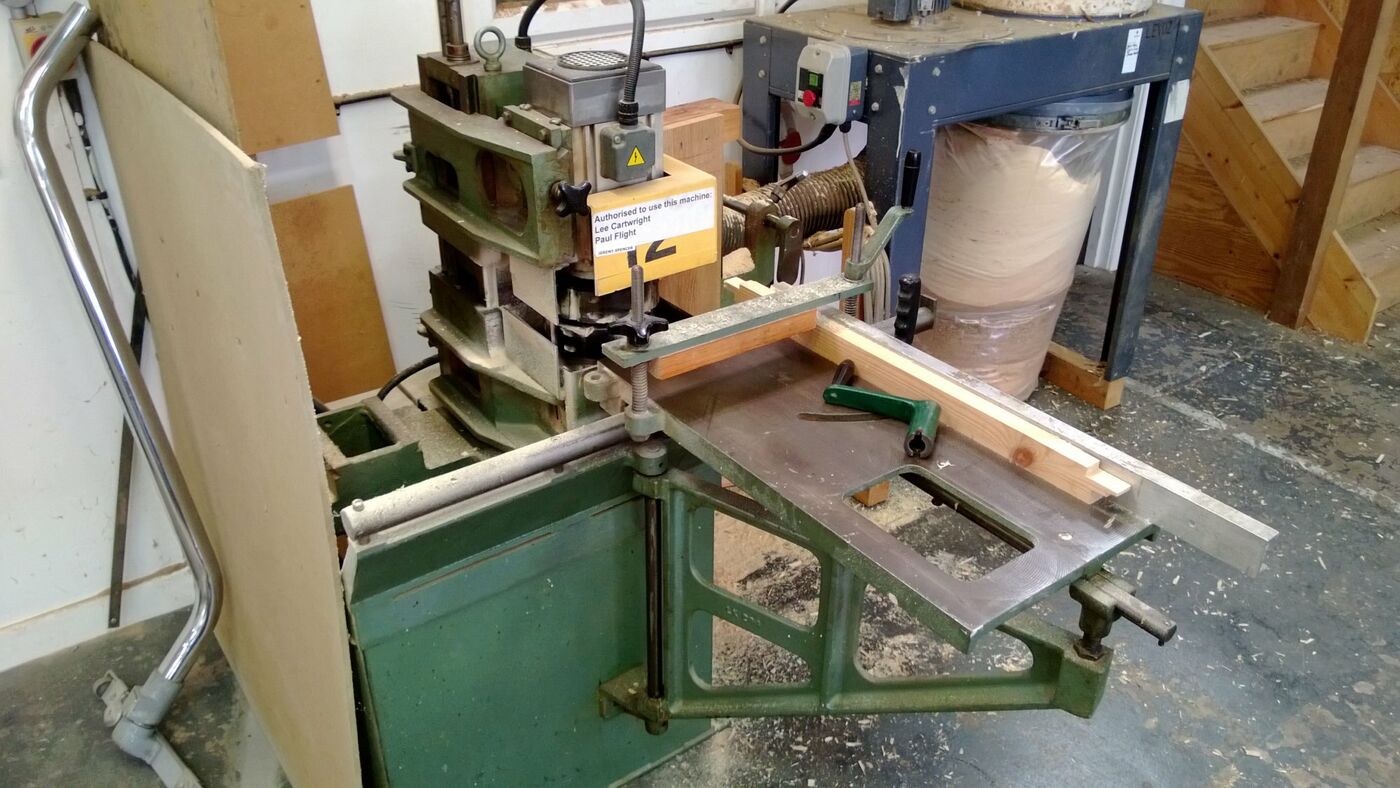

About this Used Sedgwick TE

TIMBER CAPACITY 130 x 310mm
TIMBER CAPACITY WITH FENCE @ 45 130 x 250mm
MAXIMUM LENGTH OF TENON 155mm
MAX. LENGTH OF TENON 2 PASSES 205mm
VERTICAL ADJUSTMENT OF BOTTOM CUTTERBLOCK 0 - 60mm
VERTICAL ADJUSTMENT OF TOP CUTTERBLOCK 0 - 120mm
HORIZONTAL ADJUSTMENT OF TOP CUTTERBLOCK +/- 32mm
TABLE SIZE mm 800 x 310
TABLE WORKING HEIGHT 860mm
DUST EXTRACTION OUTLETS 2 x 150mm
VOLTAGE / FREQUENCY 3 PHASE + EARTH ; 400/230 V - 50/60 Hz
MOTOR RATING 3 PHASE 2.2 Kw (S6 40%)
MOTOR FULL LOAD CURRENT IN AMPS 3 PHASE 4.75A
STARTING CURRENT IN AMPS 3 PHASE 35A
REQUIRED FUSE SIZE 3 PHASE 20A/ph
REQUIRED CABLE SIZE 3 PHASE 4mm2
DC Braking fitted
