About the Used TigerStop 6.8m

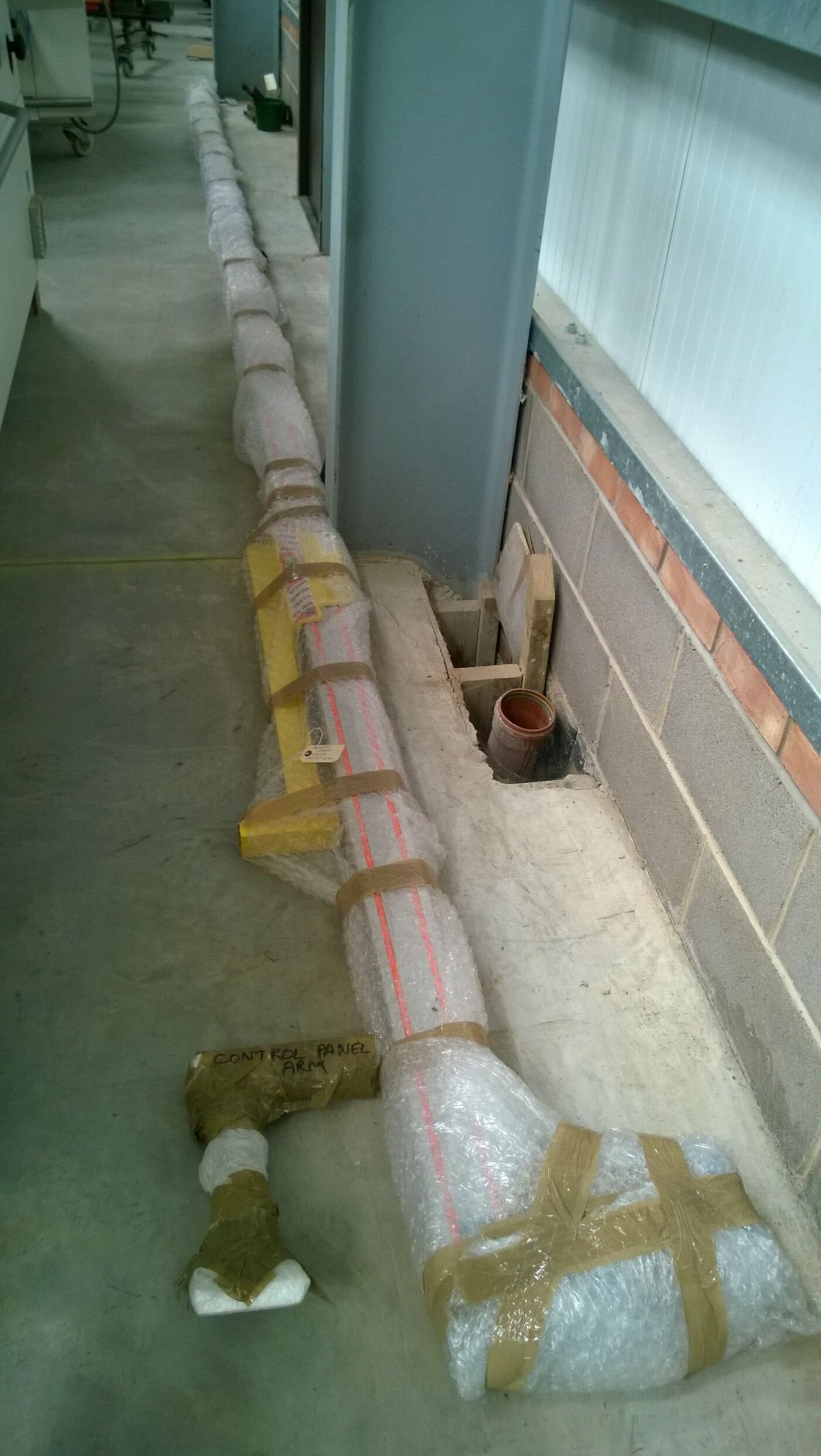

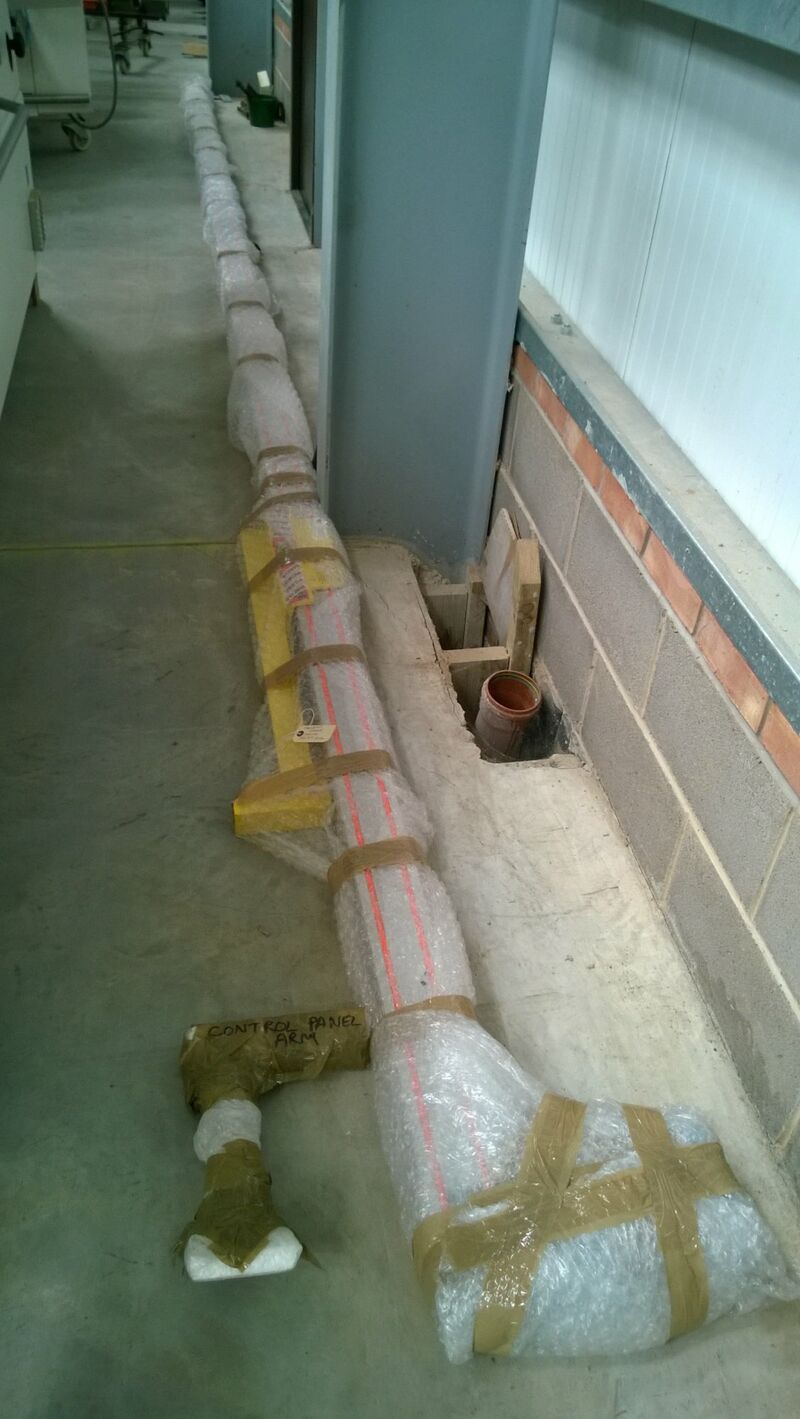

Rare opportunity to buy a used TigerStop 6.8m in very good condition.

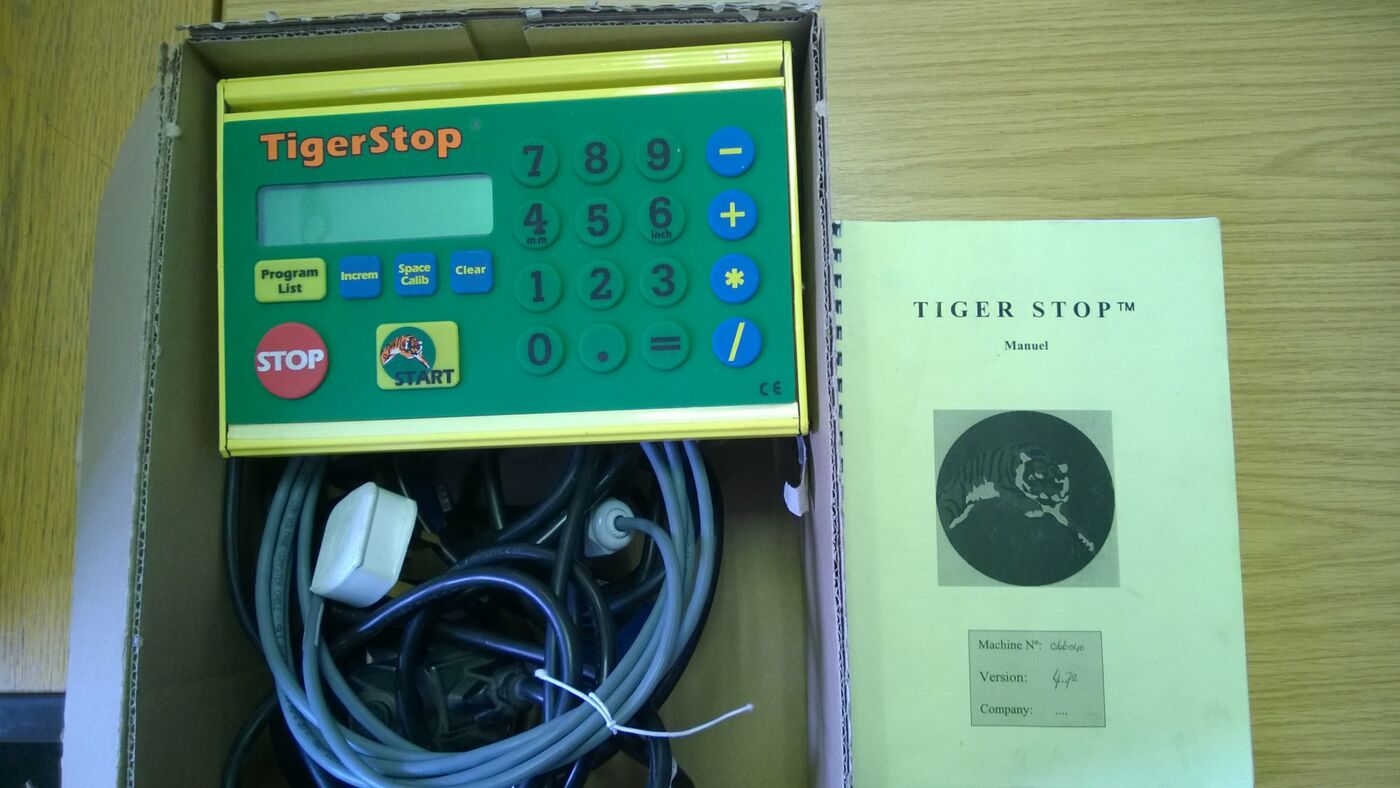

Comes complete with the controller and an extended pusher arm.

The TigerStop 6.8 has an automatic programmable stop and push feed system. It is easy and quick to mount on machines in the wood, PVC, aluminium and metal industry.

TigerStop systems can be mounted left or right side of machine / equipment. The aluminium fence is robust and 100mm x 100mm in size. The power supply required is a standard 230v, 13amp 3 pin socket. Positioning speed of the TigerStop is 60m per minute, and the repeat accuracy is 0.1mm. Information can be input via the 4 line LCD screen and key pad controller or by downloading to the controller. The maximum pushing weight is 100kg. TigerStops can be fitted to existing tables as long as the suitable, brackets are available to help mount the TigerStop, or tables can purchased specifically designed to take the TigerStop.

Used TigerStop 6.8m Features

  • Stop and pusher function
  • Memory capacity for 100 cut lists
  • Increment function
  • Adjustable speed acceleration and deceleration
  • Built in calculator
  • Control panel
  • Tiltable stop
  • Guide profile
  • Control stand for control panel
  • Bolts and T nuts for mounting
  • DM safety switch

Used TigerStop 6.8m Specification

Profile dimension 100mm x 100mm
Voltage 220v 50Hz
Power 0.6kW servo motor
Positioning speed Up to maximum 60m per minute
Repeatability 0.1mm
Push Up to 100Kg
Display 4 Lines LCD
Working Length 6.85m
Total Length 7.4m
