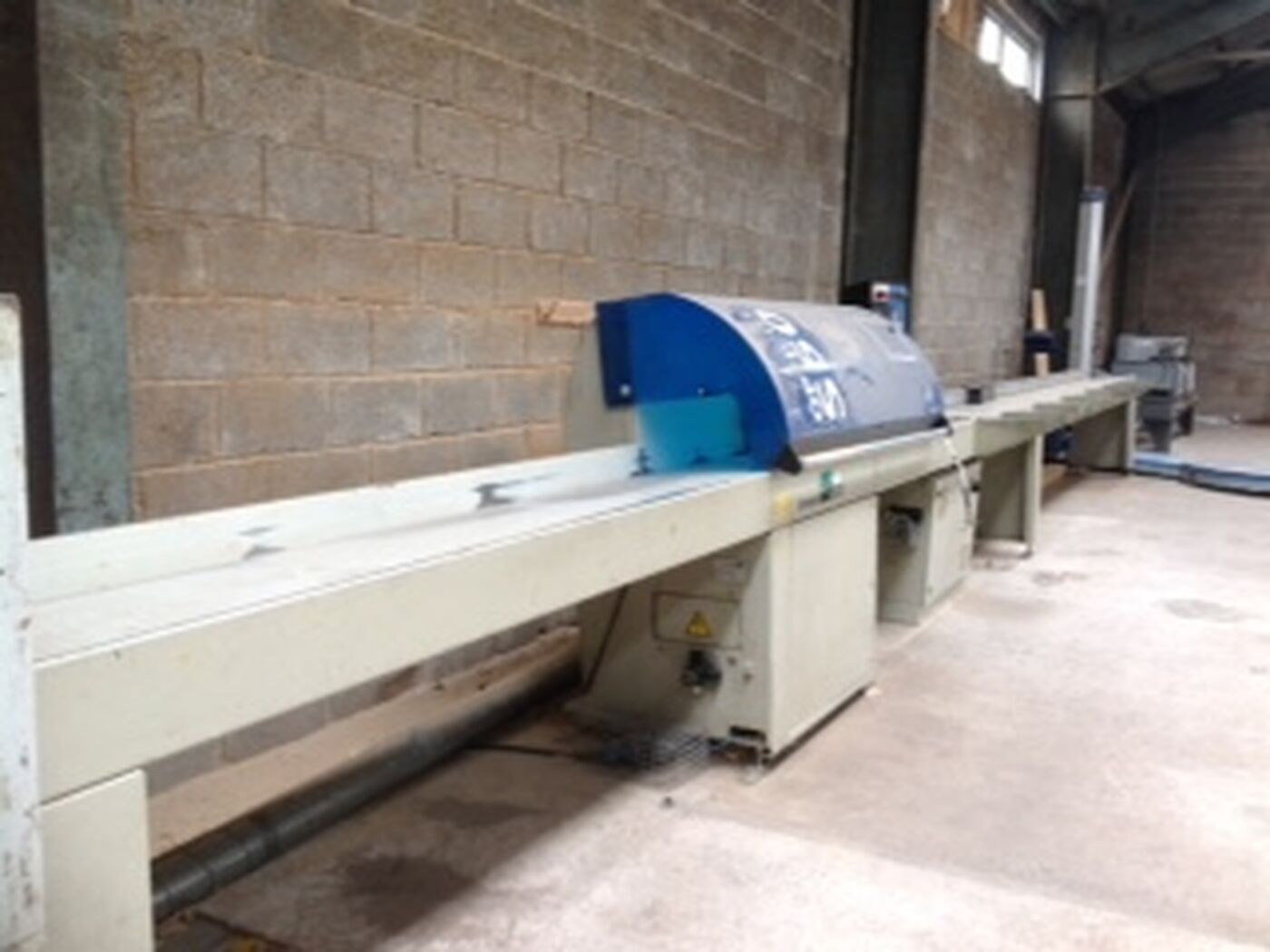

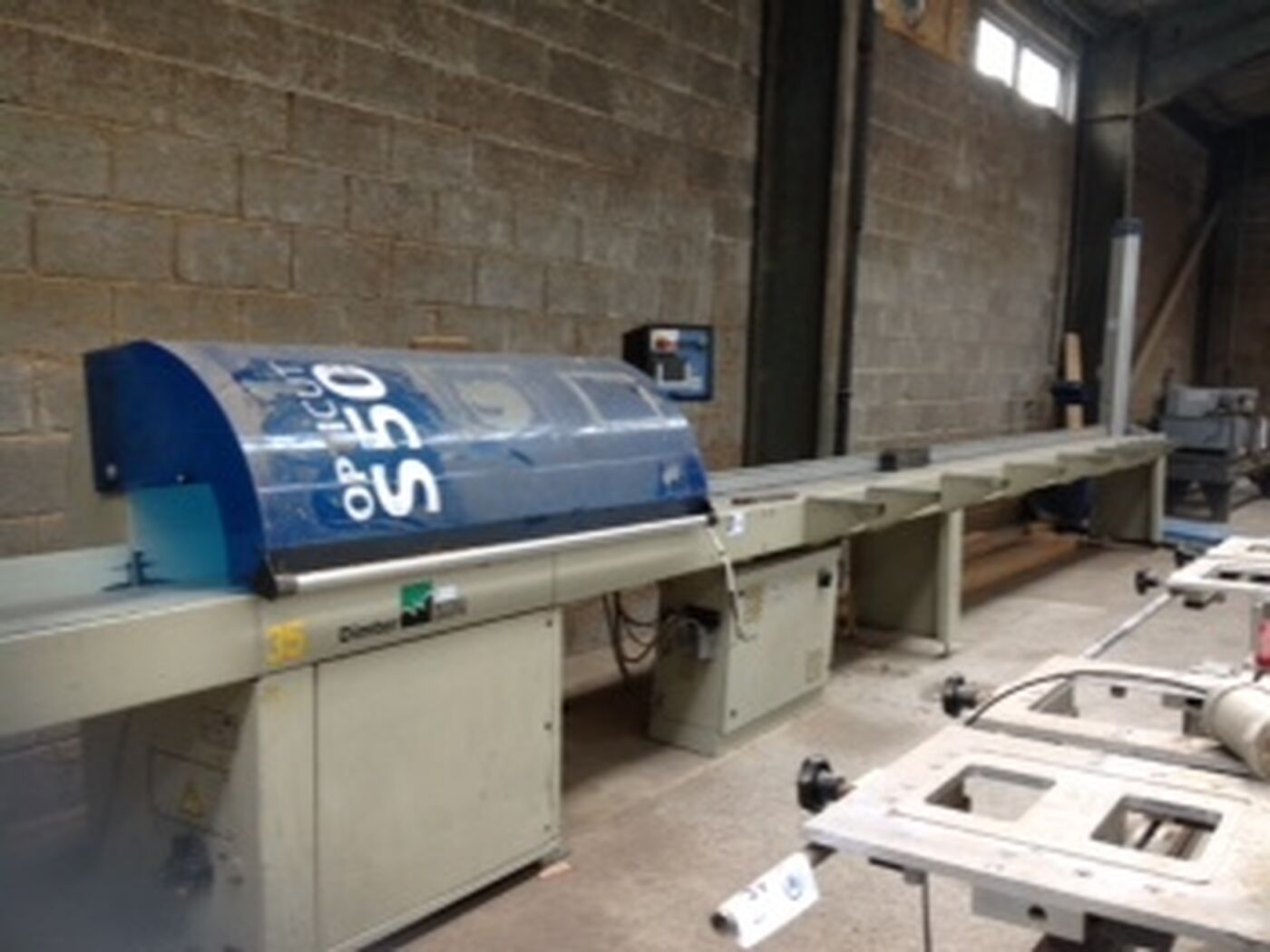

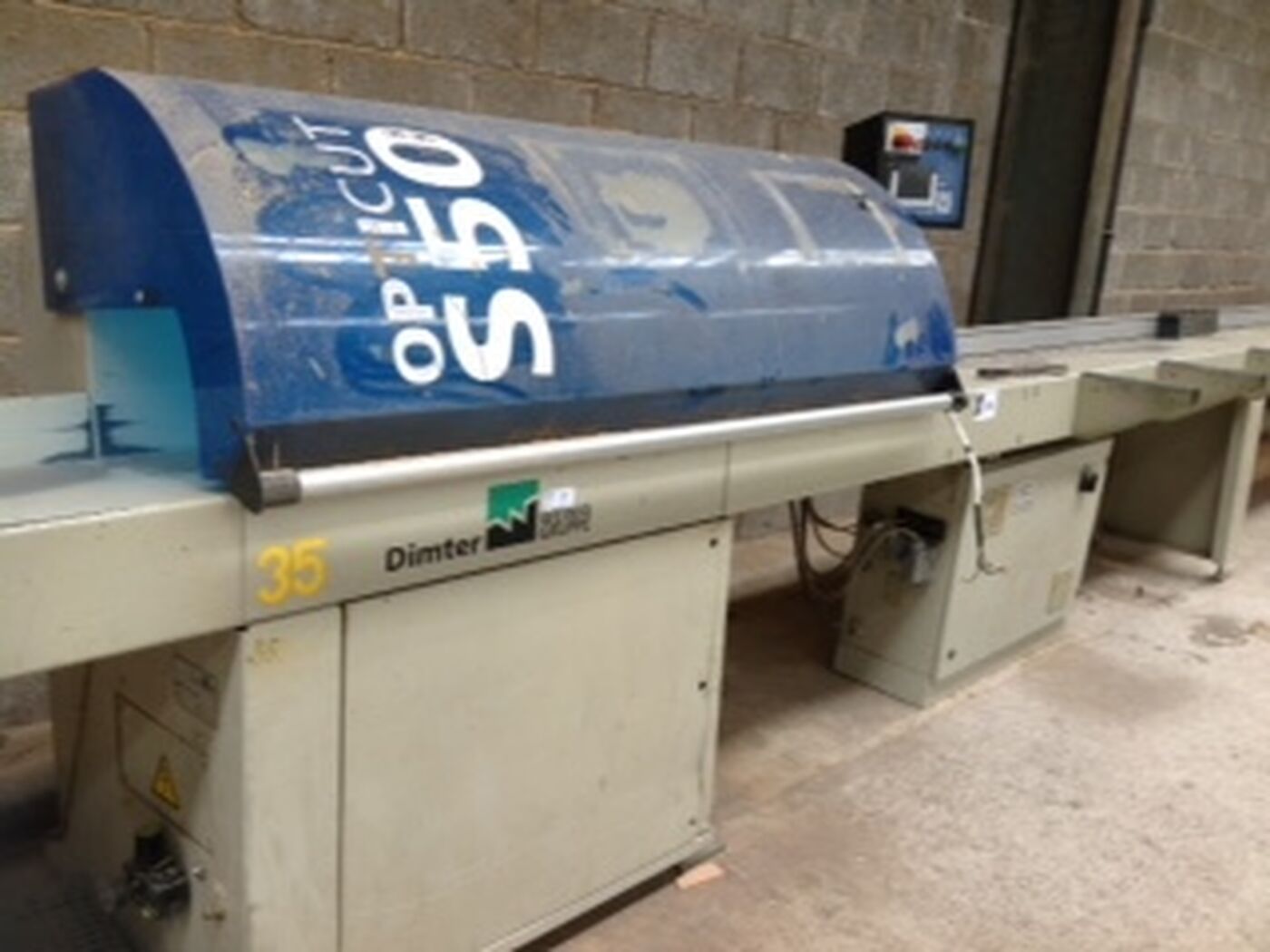

Here we have a rare opportunity to purchase a 2003 Wienig Dimter Opticut S50 automatic cross cut saw.

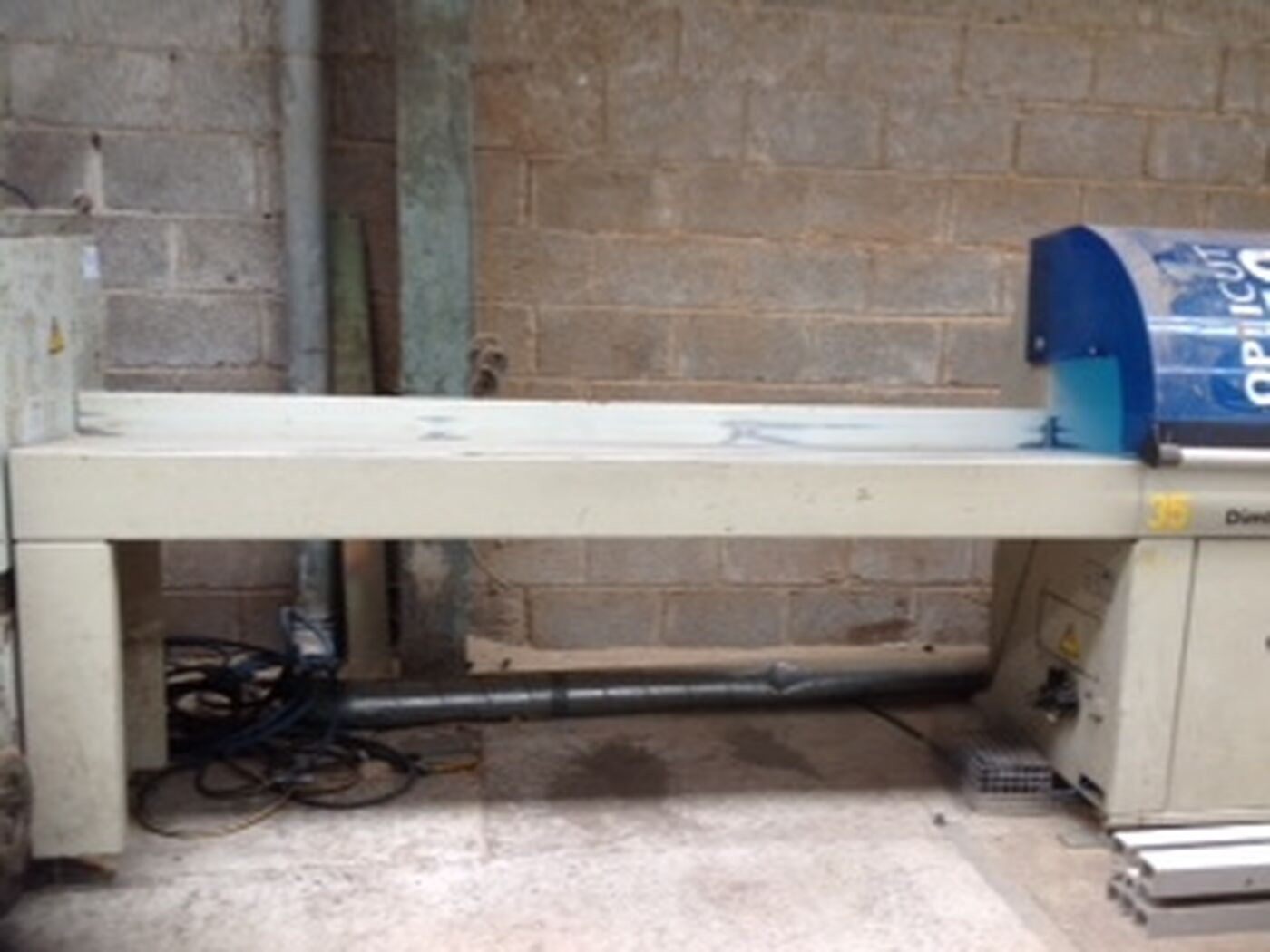

The machine comes with an 8mtr infeed table with automatic pusher arm that can accept lengths up to 6.3mtr and a 2,4mtr outfeed.
Both tables are single solid fabricated lengths of steel for added strength.
This is a tidy machine and has been kept in good working order,
To arrange a viewing or have any questions answered please call us on 01455 840224.
Ingoing Lengths | 6300mm |
---|---|
Widths | Approx 20-300mm |
Thicknesses | approx. 10 - 100 mm |
Cutting area | approx. 20 mm x 10 mm |
Saw blade diameter | 500mm |
Weight workpiece | approx. 60 kg |
Final length | approx. 10 mm(*) |
Feed speed | approx. 60 m/min. |
main motor | 5.5 kW. |
